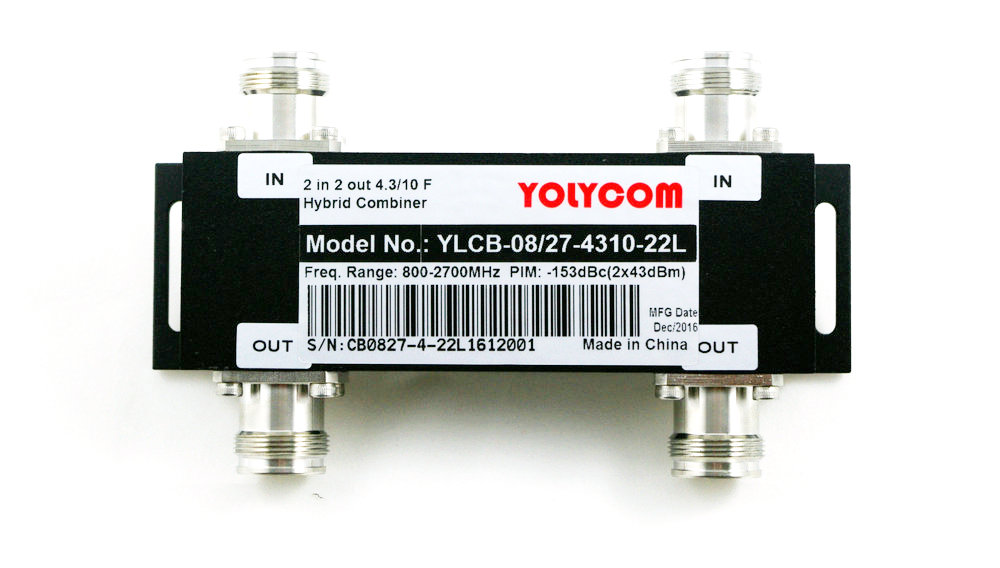

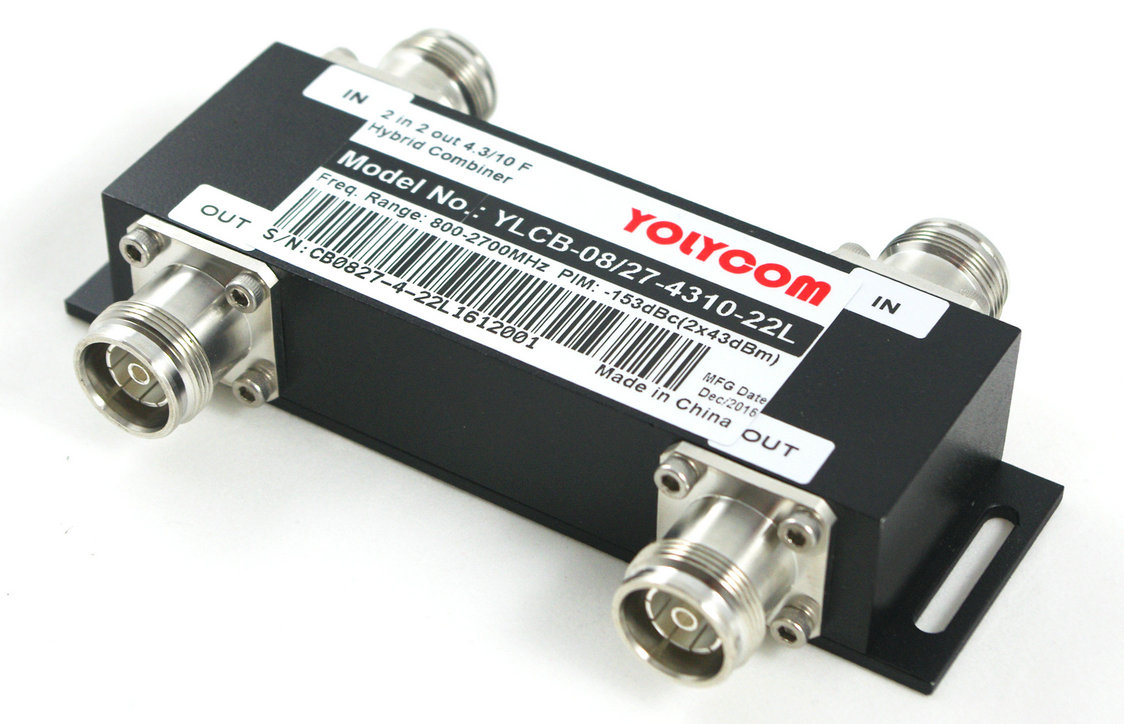

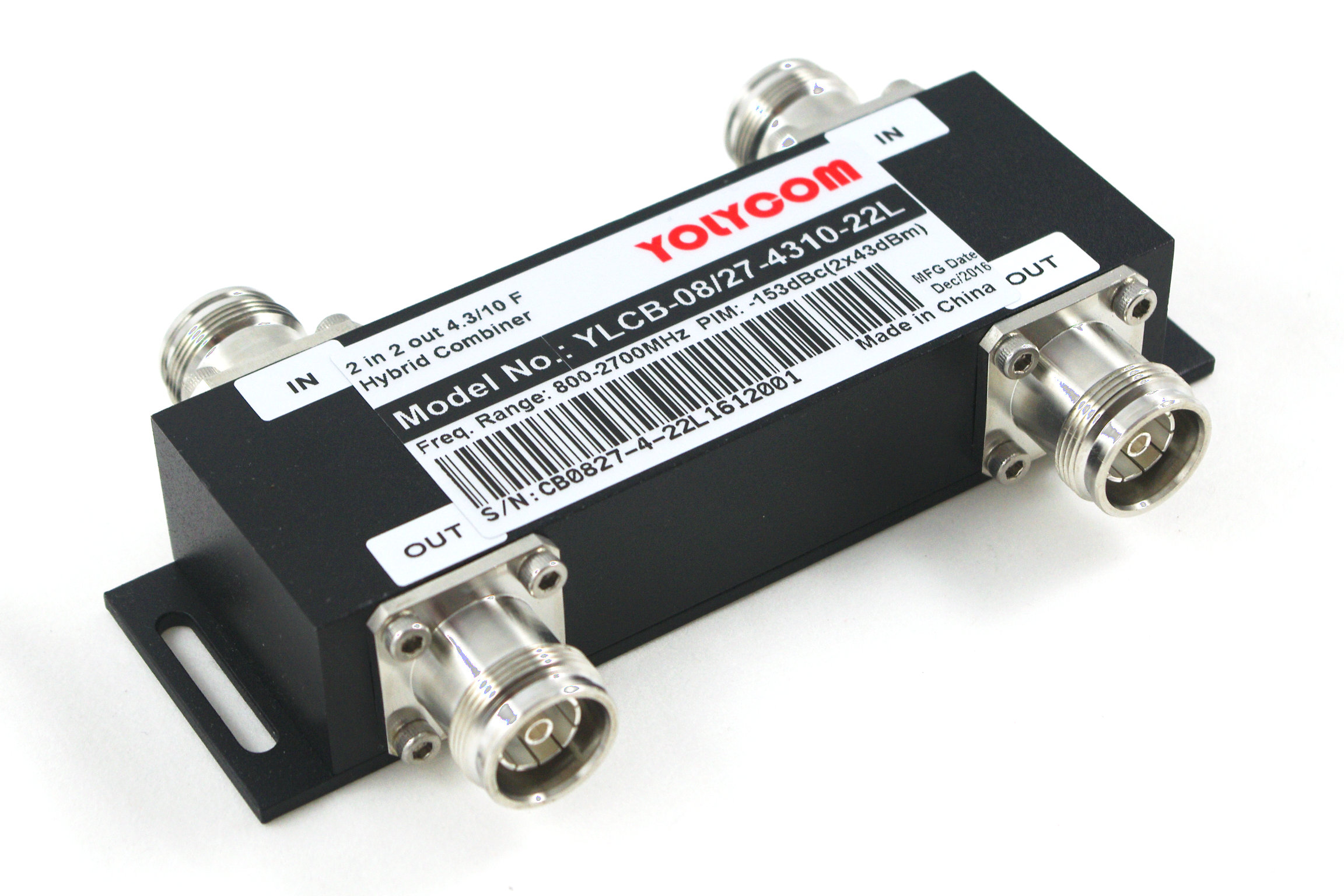

4.3/10 Mini Din Female type Low PIM Cavity hybrid combiner 2 in 2 out 2x2 coupler

4.3/10 Mini Din Female type Low PIM Cavity hybrid combiner 2 in 2 out 2x2 coupler

Model No.: YLHCB-04/27-4310-22L Code:62601
Model No.: YLHCB-07/27-4310-22L Code:62602

U.S.＄ 50.00
0.00
Quantity：
Buy now
Add to cart


Model No.: YLHCB-04/27-4310-22L Code:62601
Model No.: YLHCB-07/27-4310-22L Code:62602

Model No.: YLHCB-04/27-4310-22L Code:62601
Electrical Specifications
Frequency Range (MHz) 400 ~ 2700
Attenuation P1 - P2(dB) 3 ± 0.8
Attenuation P1 - P2(dB) 3 ± 0.8
Isolation (dB) ＞ 20
VSWR ＜ 1.3
Insertion Loss (dB) ＜ 0.2
IM.3rd order (dBc) 2×43dBm ＜-160
Impedance (Ω) 50
Power Handing (W) 150,Avg
Mechanical Specifications
Input Connector 2 × 4.3-10 Female
Output connector 2 × 4.3-10 Female
Housing Materail Aluminum Alloy
Housing Color Black

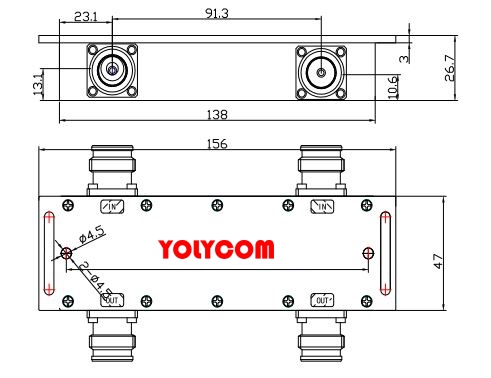

Demensions (L×W×H)mm 211 × 52 × 32
Weight (Kg) 0.5
Operating Temprature (℃) -40~+60
Application Outdoor, IP65
Model No.: YLHCB-07/27-4310-22L Code:62602
Electrical Specifications
Frequency Range (MHz) 700 ~ 2700
Attenuation P1 - P2 (dB) 3 ± 0.8
Attenuation P1 - P3 (dB) 3 ± 0.8
Isolation (dB) ＞ 20
VSWR ＜ 1.3
Insertion Loss (dB) ＜ 0.2
IM.3rd order (dBc) 2×43dBm ＜-160
Impedance (Ω) 50
Power Handing (W) 150, Avg
Mechanical Specifications
Input Connector 2 × 4.3-10 Female
Output connector 2 × 4.3-10 Female
Housing Materail Aluminum Alloy
Housing Color Black
Demensions (L×W×H)mm 146 × 460 × 31
Weight (Kg) 0.5
Operating Temprature (℃) -40~+60
Application Outdoor, IP65
