Triplexer CDMA&GSM / DCS / 3G 3-Band in 1 Combiner Outdoor with DC by Pass Din Female

Triplexer CDMA&GSM / DCS / 3G 3-Band in 1 Combiner Outdoor with DC by Pass Din Female

Model No.: YLCB-08/18/21-DF(DC)

U.S.＄ 0.00
0.00
Quantity：
Buy now
Add to cart


Model No.: YLCB-08/18/21-DF(DC)

CDMA&GSM / DCS / 3G 3-Band in 1 Combiner Outdoor with DC by Pass
Model No.: YLCB-08/18/21-DF(DC)
Electrical Specifications
Input & Output Ports Input Port 1 Input Port 2 Input Port 3 Ouput Port
CDMA800&GSM900 DCS 1800 3G/UMTS Cross Band
Frequency Range(MHz) 800-960 1710-1880 1920-2170 800-2170
Insertion Loss (dB) <0.2 <0.3 <0.35 N/A
Insertion Loss Typical (dB) 0.1 0.2 0.25 N/A
Return Loss ≥20 ≥20 ≥20 ≥20
3rd PIM (2x43dBm)dBc -150 -150 -150 N/A
Power Handing (W) 200 200 200 N/A
Peak Power (W) 1600 1600 1600 N/A
Impendence (Ohm) 50 50 50 50

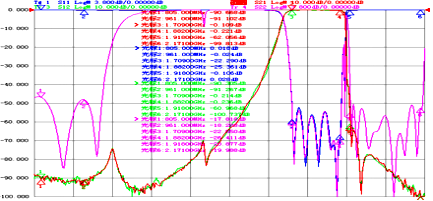

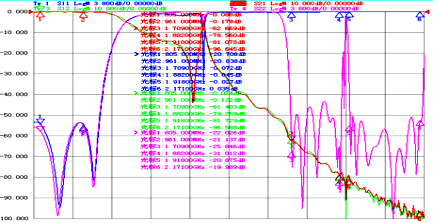

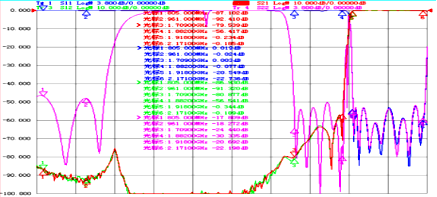

Isolation (dB) (see Annex 1 next page)
Between Input 1 & Output >20
Between Input 2 & Output >20
Between Input 3 & Output >20
Rejection (dB) (see Annex 1 next page)
Input 1 to Input 2 > 60
Input 1 to Input 3 >60
Input 2 to Input 3 >50
Input 3 to Input 2 >50
DC by Pass
Type A (Optional) > 3 A
Type B (Optional) > 3 A
Type C (Optional) > 3 A
Mechanical & Enviroment Specifications
Connector Type DIN-Female
Housing Material Aluminum

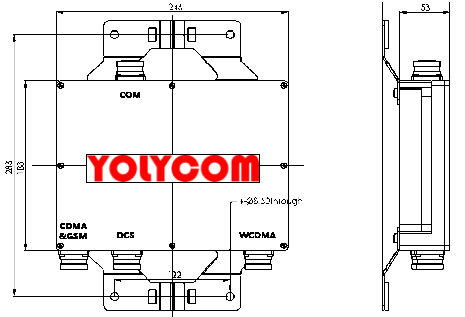

Demensions(L×W×H)(mm) 246 x 183 x 71
Weight(kg) 3.5
Color Black
Fixing Kit for Pole or wall
Working Tmeperature  -40～+85 ℃
Water Proof IP67
MTBF (Hours) >500,000
