YOLYCOM Low PIM full bandGSM 3G LTE 3 in 1 Combiner Outdoor triplexer Din Female

YOLYCOM Low PIM full bandGSM 3G LTE 3 in 1 Combiner Outdoor triplexer Din Female

Model No.: YLCB31-08/21/27-DIN-W

U.S.＄ 0.00
0.00
Quantity：
Buy now
Add to cart


Model No.: YLCB31-08/21/27-DIN-W

GSM 3G LTE 3 in 1 Combiner Outdoor
Code 33221                                                    Model No.: YLCB31-08/21/27-DIN-W
Electrical Specifications
Frequency Range (MHz) 790 ～ 960 1710 ～ 2170 2490-2690
Power Rating (Watt) 100 100 100
Input Connector - GSM DIN-Female
Input Connector - DCS DIN-Female
Input Connector - 3G DIN-Female
Output Connector - Antenna DIN-Female
Max. Insertion Loss (dB) ≤ 0.3 ≤ 0.3   ≤ 0.3
Return Loss (dB) ≥ 18 ≥ 18 ≥ 18
VSWR ≤ 1.3 ≤ 1.3 ≤ 1.3
Rejection out band (dB) ≥50(2490-2690MHz)
≥50(1710-2170MHz) 		≥50(2490-2690MHz)
≥50(790-960MHz) 		≥50(790-960MHz)
≥50(1710-2170MHz)
Impedance (Ohm) 50 50 50
3rd PIM 2x43dBm (dBc) < -150 < -150 < -150
DC bypass (Max DC 1A 60V) Optional Optional Optional
Surge Protection port 4: 2.5 кА (10/350 μs)
Mechanical Specifications

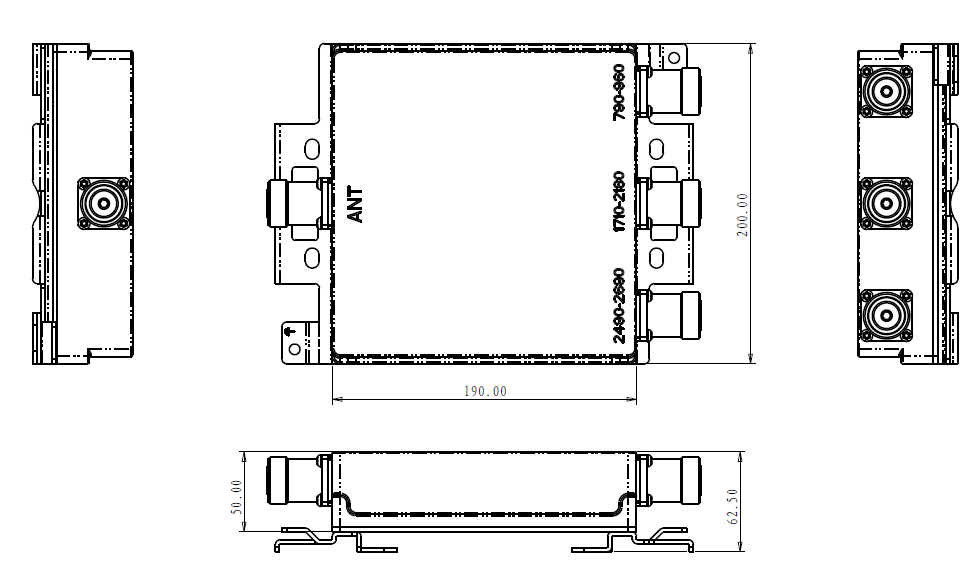

Demensions (L×W×H) mm 200 x 190 x 50
Weight (Kg) 5 kg
Outdoor Rating IP 67 outdoor
Operating Temprature -40～+85 ℃
Humidity 100%
