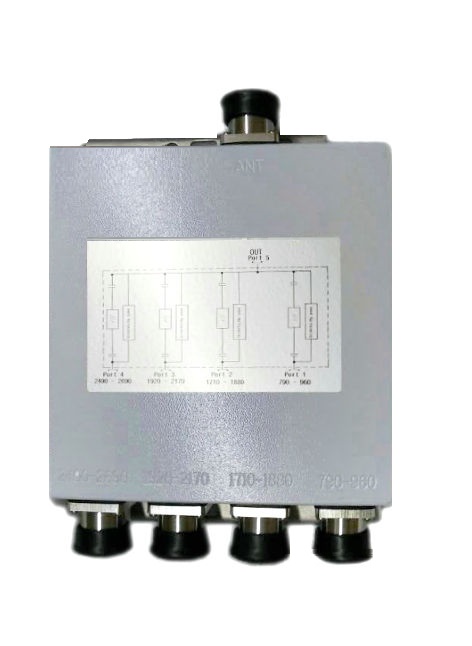

YOLYCOM LTE700, GSM900, 1800 full band quaplexer 4 way combiner 700/900/1800/2100 MHz

YOLYCOM LTE700, GSM900, 1800 full band quaplexer 4 way combiner 700/900/1800/2100 MHz

Model No.: YLCB-07/09/18/21-DIN-W

U.S.＄ 0.00
0.00
Quantity：
Buy now
Add to cart


Model No.: YLCB-07/09/18/21-DIN-W

Code 33508                                                               Model No.: YLCB-07/09/18/21-DIN-W
Electrical Specifications LTE700 CDMA/LTE900 DCS/LTE1800 WCDMA2100
Frequency Range (MHz) 703-803 825-960 1710-1880 1920-2170
Power Rating (Watt) 250 250 250 250
Input Connector - LTE 700 DIN-Female
Input Connector - LTE 900 DIN-Female
Input Connector - LTE 1800 DIN-Female
Input Connector - W2100 DIN-Female
Output Connector - Antenna DIN-Female
Max. Insertion Loss (dB) ≤ 0.3   ≤ 0.3 ≤ 0.3 ≤ 0.3
Return Loss (dB) ≥ 20 ≥ 20 ≥ 20 ≥ 20
VSWR ≤ 1.25 ≤ 1.25 ≤ 1.25 ≤ 1.25
Rejection out band (dB) ≥50 (825--2170MHz) ≥50(703-803&1710-2170MHz) ≥50(703-960/1920-2170MHz) ≥50(703-1880MHz)
Impedance (Ohm) 50 50 50 50
3rd PIM 2x43dBm (dBc) < -150 < -150 < -150 < -150
DC bypass (Max DC 3A) Optional Optional Optional Optional
Surge Protection ANT Port: 3 кА (10/350 μs)
Mechanical Specifications

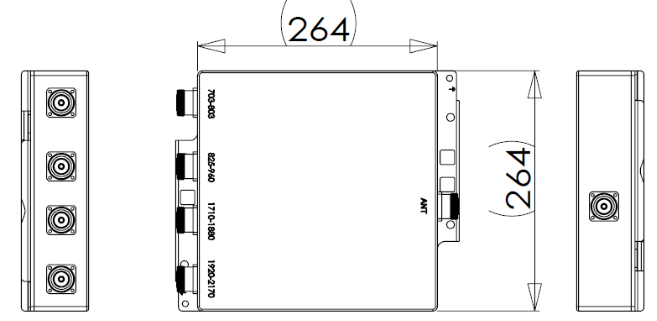

Demensions (L×W×H) mm 250×220×64(Excluding Connectors and Brackets)
Weight (Kg) 8 kg
Outdoor Rating IP 66 outdoor
Operating Temprature  -40～+85 ℃
Humidity 100%
Installation Pole 70-110mm or Wall
