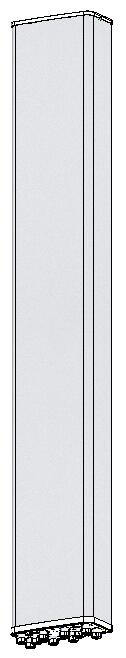

10 Port，5 Vet 790～960MHz 3*1710～2690MHz 2490~2690MHz 5X-Pol 65° 15/18dBi Diplexed Panel Antenna

10 Port，5 Vet 790～960MHz 3*1710～2690MHz 2490~2690MHz 5X-Pol 65° 15/18dBi Diplexed Panel Antenna

Modle No.: YL5VX0727D27651518 P8 1.5M
Code: 22845

U.S.＄ 0.00
0.00
Quantity：
Buy now
Add to cart


Modle No.: YL5VX0727D27651518 P8 1.5M
Code: 22845

10 Port，4 Array 5 Vet with 1 Diplexed High Band 1 X 790～960MHz 3×1710～2690MHz 1x2490~2690MHz  5X-Pol 65° 15/18dBi Panel Antenna
Modle No.: YL5VX0727D27651518 P8 1.5M  Code: 22845
Electrical Specifications
Frequency Range 790-960 2 * 1710-2690
Diplexed Array 1710-2170 2490-2690
Polarization ± 45 * 5
Half-power H Beamwidth (°) 65°* 5
Half-power V Beamwidth (°) 15° 2*7.5°
7.5° 7.5°
Gain (dBi) 15 17.5
17.5 18
Electrical downtilt (°) 5 * 2～12
First Up-lobe Suppression (dB) 16
VSWR <1.5
IM.3rd order (2×43dBm) <-107
Front-to-back Ratio (dB) >25
Isolation (dB) >28
Impedance (Ω) 50
Maximum Input Power (W) 300
Lightning Protection Direct Grounded
Mechanical Specifications
Connector Type 10×7/16 DIN Female
Connector Position Bottom
Tilt Adjustment 5 Ret Ports
Antenna Size (L × W × H) mm 1490×400×182
Antenna Weight (kg) 29
Weight of Fixing Kits (kg) 3.5
Packing Info 1713*455*245mm * 36kg
Rated Wind Velocity (m/s) 60
Operating Temprature (℃) -40 ～  70
Mounting Features
Diameter of Installation Pole (mm) Φ50 ～ Φ110
Length of Installation Pole (mm) ≥ 2000
Mechanical Adjustable Angle Range (°) 0 ～ 10
Material
Reflector Material Aluminum Alloy
Radiating Element Material Cu Ag
Radome Material Fiberglass
Installation Kits Galvanized Steel
