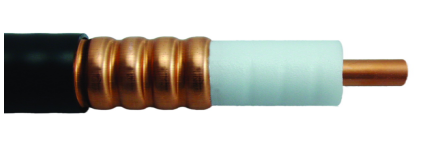

Impedance

50 ohm

Operating Frequency

DC - 5 GHz

Max. VSWR

1.10 for 800 - 2200 MHz

1.15 for DC - 2690 GHz

Velocity

88%

Pulse Reflection

0.50%

RF Peak Voltage

2.9 kV

Peak Power

90 kW

Max. Voltage for Jacket Spark Test

8 kV

Capacitance

76 pf/m

Inductance

0.185 uH/m

Insulation Resistance

5000M ohm

DC Resistance Inner Conductor

DC Resistance Outer Conductor

1.03 ohm/km @ 5 kV

1.05 ohm/km @ 5 kV

Attenuation

In Attached Table

Minimum Bending Radius for Multiple Bends

250 mm

Maximum Times of Bending

40

Minimum Bending Radius for Single Bend

125 mm

Bending Moment

15 N-m

Flat Plate Crush Pressure

1.4 kg/mm

Tensile Strength

1450 N

Recommended Clamp Spacing

0.8 m

Inner Conductor OD

9.00 mm

Diameter over Dielectric Material

22.55 mm

Outer Conductor OD

24.95 mm

Diameter over Jacket

27.74 mm

Unit Weight

0.53 kg/m

Inner Conductor

Normal Copper Tube

Dielectric

Foam PE

Color of Dielectric

White

Outer Conductor

Corrugated Copper Tube

Jacket Material

PE, (UL1518-1990)

Jacket Color

Black

Storage Temperature

from -70 °C to 80 °C

Operating Temperature

from -55 °C to 80 °C

Installation / Cutting / Re-packing Temperature

from -40 °C to 60 °C

Frequency (MHz)

Attenuation (dB/100m)

Average Power (kW)

100

1.17

8.62

200

1.69

5.99

300

2.13

4.24

450

2.60

3.88

800

3.56

2.83

900

3.80

2.65

1000

4.03

2.50

1500

5.08

1.99

1800

5.61

1.79

2000

6.05

1.68

2200

6.40

1.59

2500

6.90

1.50

3000

7.60

1.33
