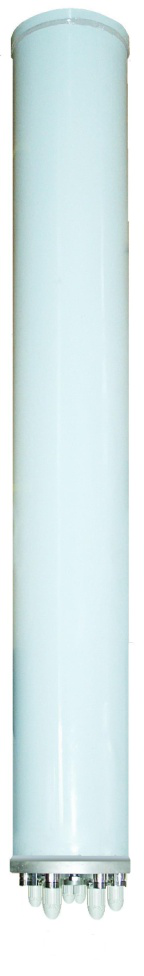

6 Port, 3 VET X Pol 1710-2690 MHz, 3x65° 3x18dBi 3 Section Tube Antenna

6 Port, 3 VET X Pol 1710-2690 MHz, 3x65° 3x18dBi 3 Section Tube Antenna

Model No.： YLPXT3S17276518-6MP
Code: 21904

U.S.＄ 0.00
0.00
Quantity：
Buy now
Add to cart


Model No.： YLPXT3S17276518-6MP
Code: 21904

6 Port, 3 VET X Pol 1710-2690 MHz, 3x65° 3x18dBi 3 Section Tube Antenna
Model No.： YLPXT3S17276518-6MP  Code: 21904
Electrical Specifications
Frequency Range(MHz) 1710-2690
Polarization XXX
Half-power Horizontal Beamwidth(°) 3x65
Half-power Vertical Beamwidth(°) 6.5
Electrical down tilt(°) 2～12
Manual or 3 RCUs
Gain(dBi) 18
VSWR <1.5
Isolation(dB)(Intraband±45°) >28
Cross Polarization Level(dB) >15
IM.3rd order(2×43dBm) <-150dBc
Sidelobe Suppression(dB)(First up) ≥16
Front-to-back Ratio(dB) >25
Impedance(Ω) 50
Maximum Input Power(W) 500
Lightning Protection DC Ground
Mechanical Specifications
Mechanical Direction Adjustment
Connector Type 6×7/16 DIN-F
2 AISG
Connector Position Bottom
Antenna Size(L×W×H)mm 2150×φ198
Antenna Weight(Kg) 25
Rated Wind Velocity(m/s) 60
Operating Temperature(℃) -55～+65
Mounting Features
Installed on Specified Installation Stand Adaptor
Material
Reflector Material Aluminum Alloy
Radiating Element Material Cu Ag
Radome Material UPVC
Installation Kits Galvanized Steel
