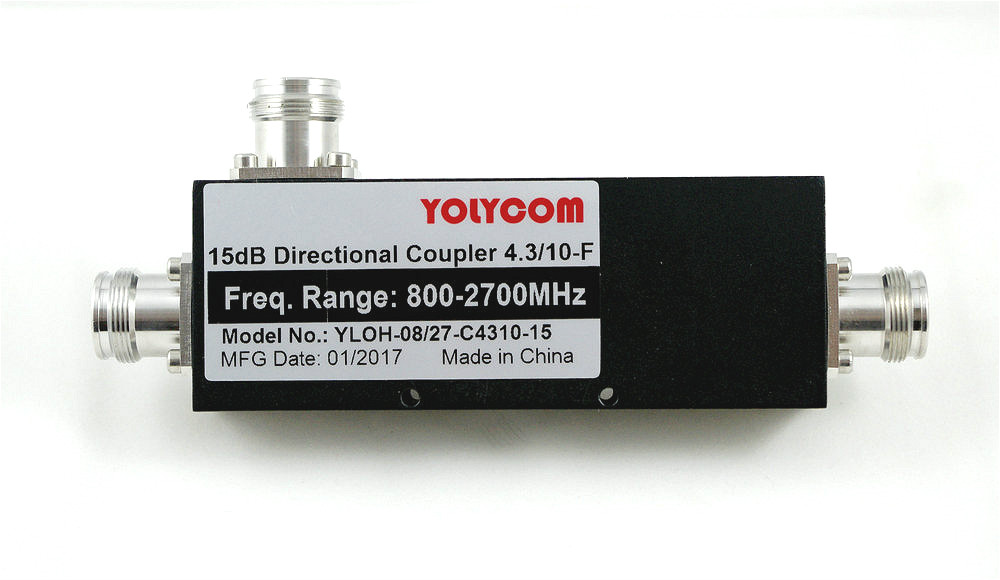

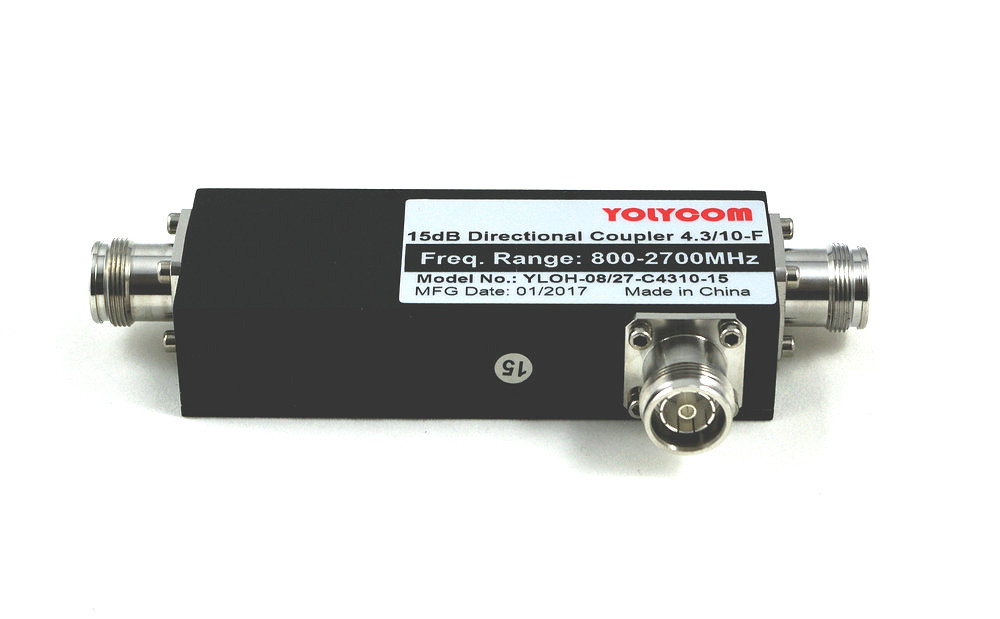

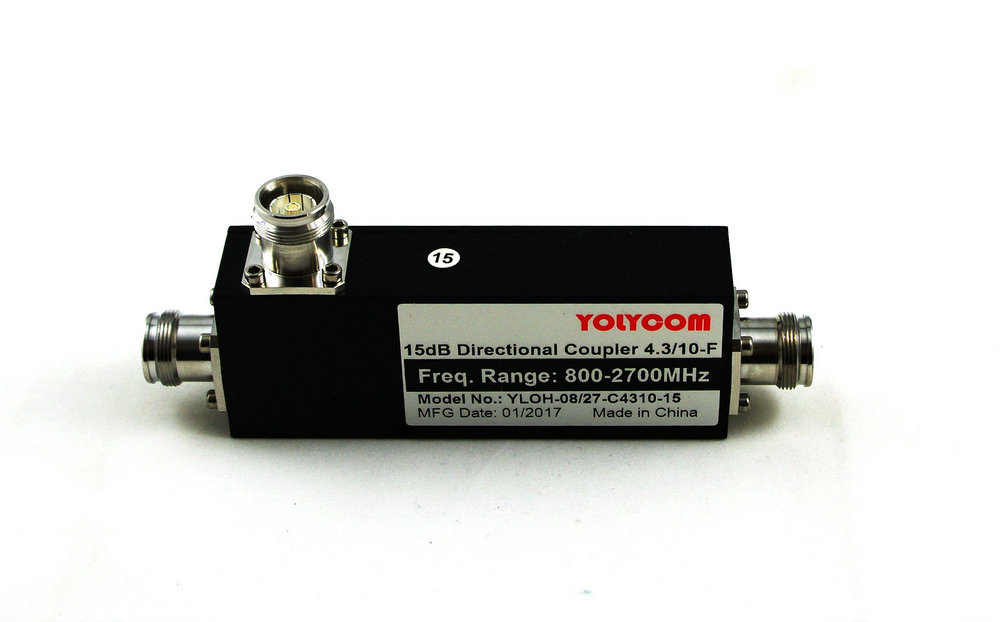

4.3/10 Mini Din Female Type Low PIM Cavity Directional Coupler 6-30dB

4.3/10 Mini Din Female Type Low PIM Cavity Directional Coupler 6-30dB

6dB Coupler: Model No.: YLOH-0727-C4310-6 Code: 62405
10dB Coupler: Model No.: YLOH-0727-C4310-10 Code: 62406
20dB Coupler: Model No.: YLOH-0727-C4310-20 Code: 62407
30dB Coupler: Model No.: YLOH-0727-C4310-30 Code: 62408

U.S.＄ 50.00
0.00
Quantity：
Buy now
Add to cart


6dB Coupler: Model No.: YLOH-0727-C4310-6 Code: 62405
10dB Coupler: Model No.: YLOH-0727-C4310-10 Code: 62406
20dB Coupler: Model No.: YLOH-0727-C4310-20 Code: 62407
30dB Coupler: Model No.: YLOH-0727-C4310-30 Code: 62408

6dB Coupler: Model No.: YLOH-0727-C4310-6 Code: 62405
Electrical Specifications
Frequency Range(MHz) 698-2700
Variant (dB) 6
Coupling loss (dB) ± 0.8
Insertion Loss ≤ 2
Directivity (dB) ≥ 15
VSWR ≤1.3
IM.3rd order (dBc) 2×43dBm ≤ -150@2×+43dBm
Power (W) 200,Avg.1500,Peak
Impedance (Ω) 50Ω
Mechanical Specifications
Input Connector 4.3/10 Female
Output connector 4.3/10 Female
Coupling connector 4.3/10 Female

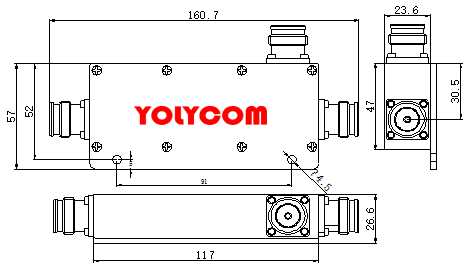

Demensions (L×W×H)mm 160.7 × 57 × 23.6
Weight (kg) 0.5
Operating Temprature (℃) -25~+65
Material & Plating
Conductor Material Spring Bronze
Outer Metel Parts Black Plated
Installation Kit Stainless Steel
10dB Coupler: Model No.: YLOH-0727-C4310-10 Code: 62406
Electrical Specifications
Frequency Range(MHz) 698-2700
Variant (dB) 10
Coupling loss (dB) ± 1
Insertion Loss ≤ 1
Directivity (dB) ≥ 15
VSWR ≤ 1.3
IM.3rd order (dBc) 2×43dBm ≤ -150@2×+43dBm
Power (W) 200,Avg.1500,Peak
Impedance(Ω) 50Ω
Mechanical Specifications
Input Connector 4.3/10 Female
Output connector 4.3/10 Female
Coupling connector 4.3/10 Female
Demensions (L×W×H) mm 160.7 × 57 × 23.6
Weight (kg) 0.5
Operating Temprature (℃) -25~+65
Material & Plating
Conductor Material Spring Bronze
Outer Metel Parts Black Plated
Installation Kit Stainless Steel
20dB Coupler: Model No.: YLOH-0727-C4310-20 Code: 62407
Electrical Specifications
Frequency Range(MHz) 698-2700
Variant (dB) 20
Coupling loss (dB) ± 1.5
Insertion Loss ≤ 0.4
Directivity (dB) ≥  15
VSWR ≤1.3
IM.3rd order (dBc) 2×43dBm ≤ -150@2×+43dBm
Power (W) 200,Avg.1500,Peak
Impedance(Ω) 50Ω
Mechanical Specifications
Input Connector 4.3/10 Female
Output connector 4.3/10 Female
Coupling connector 4.3/10 Female
Demensions (L×W×H)mm 160.7 × 57 × 23.6
Weight (kg) 0.5
Operating Temprature (℃) -25~+65
Material & Plating
Conductor Material Spring Bronze
Outer Metel Parts Black Plated
Installation Kit Stainless Steel
30dB Coupler: Model No.: YLOH-0727-C4310-30 Code: 62408
Electrical Specifications
Frequency Range(MHz) 698-2700
Variant (dB) 30
Coupling loss (dB) ± 2.0
Insertion Loss ≤ 0.3
Directivity (dB) ≥ 15
VSWR ≤1.3
IM.3rd order (dBc) 2×43dBm ≤ -150@2×+43dBm
Power (W) 200,Avg.1500,Peak
Impedance (Ω) 50Ω
Mechanical Specifications
Input Connector 4.3/10 Female
Output connector 4.3/10 Female
Coupling connector 4.3/10 Female
Demensions (L×W×H) mm 160.7 × 57 × 23.6
Weight (kg) 0.5
Operating Temprature (℃) -25~+65
Material & Plating
Conductor Material Spring Bronze
Outer Metel Parts Black Plated
Installation Kit Stainless Steel
