DIN Female Type Low PIM Cavity Directional Coupler 6-30dB

DIN Female Type Low PIM Cavity Directional Coupler 6-30dB

6dB Coupler: Model No.: YLOH-0727-CD Code: 62409
10dB Coupler: Model No.: YLOH-0727-CD-10 Code: 62411
20dB Coupler: Model No.: YLOH-0727-CD-20 Code: 62414
30dB Coupler: Model No.: YLOH-0727-CD-30 Code: 62415

U.S.＄ 50.00
0.00
Quantity：
Buy now
Add to cart


6dB Coupler: Model No.: YLOH-0727-CD Code: 62409
10dB Coupler: Model No.: YLOH-0727-CD-10 Code: 62411
20dB Coupler: Model No.: YLOH-0727-CD-20 Code: 62414
30dB Coupler: Model No.: YLOH-0727-CD-30 Code: 62415

6dB Coupler: Model No.: YLOH-0727-CD Code: 62409
Electrical Specifications
Frequency Range (MHz) 698-2700
Variant (dB) 6
Coupling loss (dB) ± 0.8
Insertion Loss ≤1.8
Directivity (dB) ≥ 20
VSWR ≤ 1.3
IM.3rd order (dBc) 2×43dBm ≤ -150
Power (W) 200,Avg.1500,Peak
Impedance (Ω) 50Ω
Mechanical & Environmental Specifications
Input Connector Din-Female
Output & Coupler Connectors 2 X Din-Female

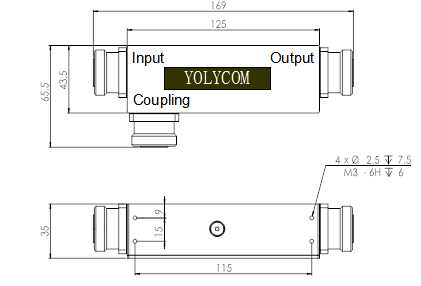

Demensions (L×W×H) mm 125 X 35 X 43.5
Weight (kg) 0.8
Installation Kit Optional
Humidity (%) 0 to 100
Application IP65
Operating Temprature (℃) -25~+65
Material&Plating
Inner Conductor Material Spring Bronze
Inner Conductor Plating Silver Plated
Outer Metel Material Aluminum

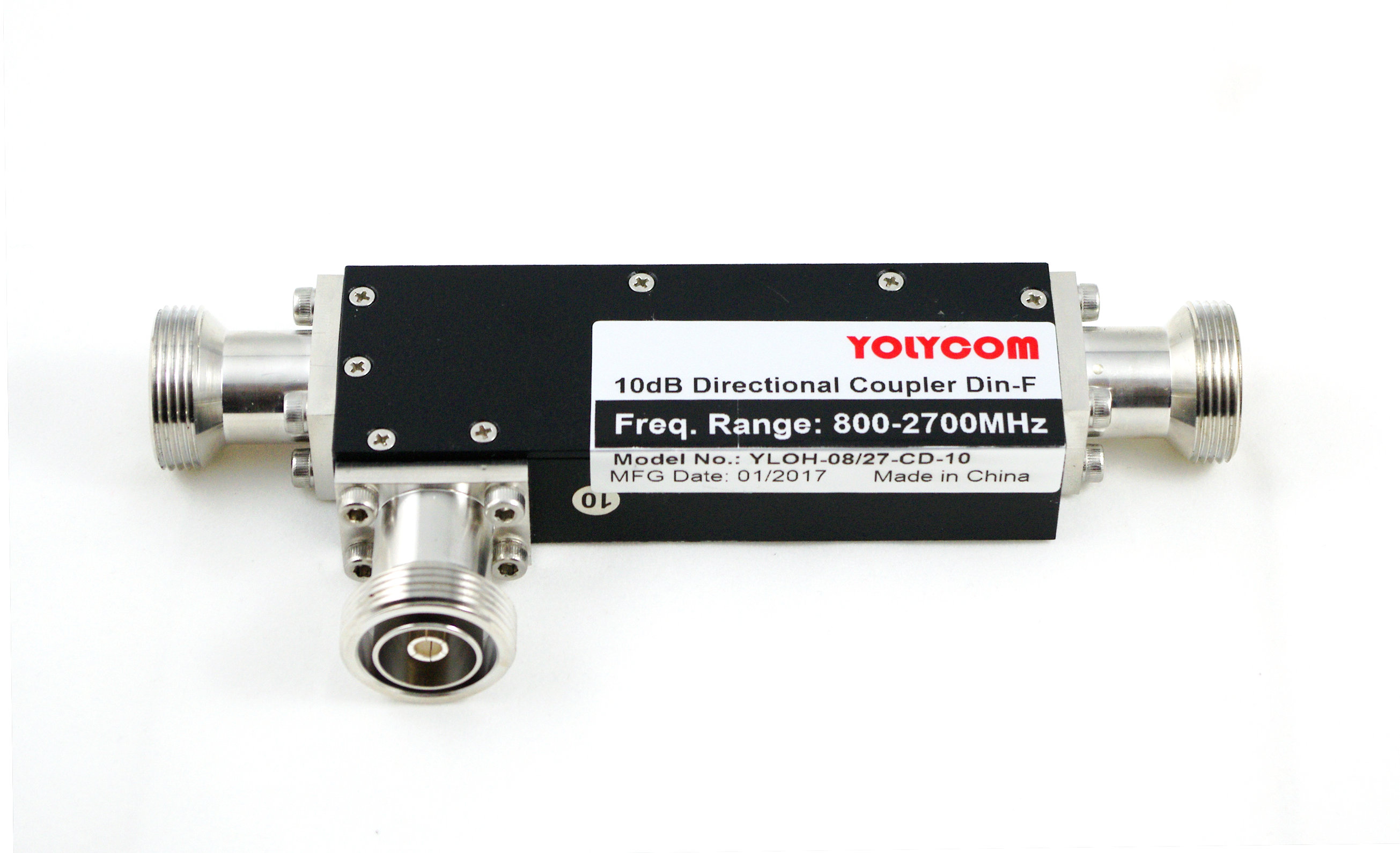

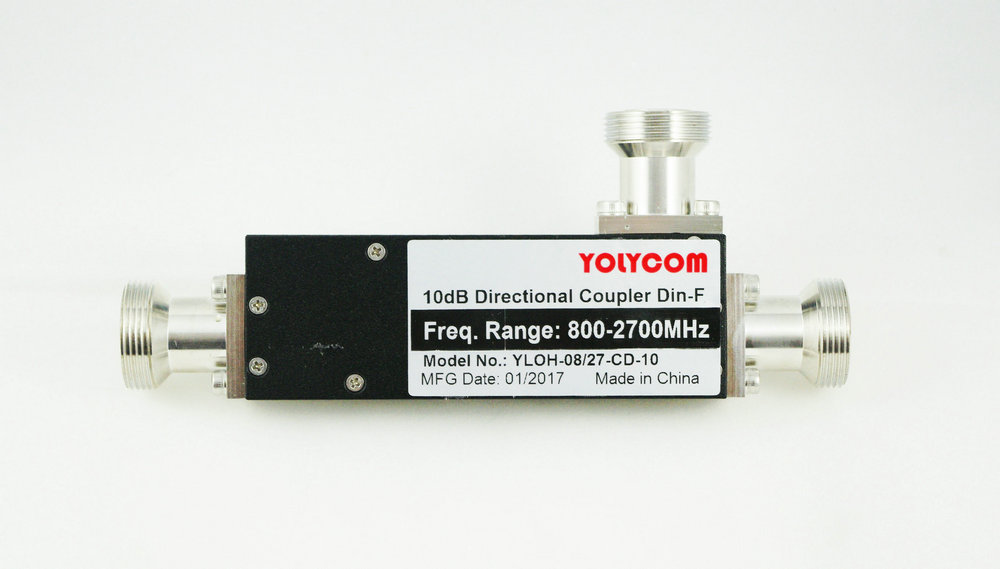

10dB Coupler: Model No.: YLOH-0727-CD-10 Code: 62411
Electrical Specifications
Frequency Range (MHz)
Variant (dB)
Coupling loss (dB)
Insertion Loss
Directivity (dB)
VSWR
IM.3rd order (dBc) 2×43dBm
Power (W)
Impedance (Ω)
Mechanical & Environmental Specifications
Input Connector
Output & Coupler Connectors
Demensions (L×W×H)mm
Weight (kg)
Installation Kit
Humidity (%)
Application
Operating Temprature (℃)
Material&Plating
Inner Conductor Material
Inner Conductor Plating
Outer Metel Material
20dB Coupler: Model No.: YLOH-0727-CD-20 Code: 62414
Electrical Specifications
Frequency Range (MHz) 698-2700
Variant (dB) 20
Coupling loss (dB) ± 1.5
Insertion Loss ≤ 0.4
Directivity (dB) ≥ 20
VSWR ≤1.3
IM.3rd order (dBc) 2×43dBm ≤ -150
Power (W) 200,Avg.1500,Peak
Impedance (Ω) 50Ω
Mechanical & Environmental Specifications
Input Connector Din-Female
Output & Coupler Connectors 2 X Din-Female
Demensions(L×W×H)mm 125 X 35 X 43.5
Weight (kg) 0.8
Installation Kit Optional
Humidity (%) 0 to 100
Application IP65
Operating Temprature (℃) -25~+65
Material&Plating
Inner Conductor Material Spring Bronze
Inner Conductor Plating Silver Plated
Outer Metel Material Aluminum
30dB Coupler: Model No.: YLOH-0727-CD-30 Code: 62415
Electrical Specifications
Frequency Range (MHz) 698-2700
Variant (dB) 30
Coupling loss (dB) ± 2.0
Insertion Loss ≤ 0.3
Directivity (dB) ≥ 20
VSWR ≤ 1.3
IM.3rd order (dBc) 2×43dBm ≤ -150
Power (W) 200,Avg.1500,Peak
Impedance (Ω) 50Ω
Mechanical & Environmental Specifications
Input Connector Din-Female
Output & Coupler Connectors 2 X Din-Female
Demensions (L×W×H)mm 125 X 35 X 43.5
Weight (kg) 0.8
Installation Kit Optional
Humidity (%) 0 to 100
Application IP65
Operating Temprature (℃) -25~+65
Material&Plating
Inner Conductor Material Spring Bronze
Inner Conductor Plating Silver Plated
Outer Metel Material Aluminum
