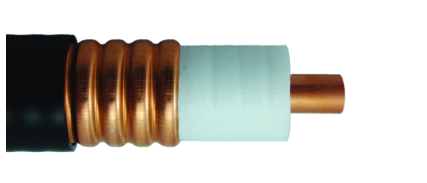

Impedance

50 ohm

Operating Frequency

DC - 4 GHz

Max. VSWR

1.10 for 800 - 2200 MHz

1.15 for DC - 4 GHz

Velocity

89%

Pulse Reflection

0.5%

RF Peak Voltage

4.1 kV

Peak Power

200 kW

Max. Voltage for Jacket Spark Test

10 kV

Capacitance

75 pf/m

Inductance

0.184 uH/m

Insulation Resistance

5000M ohm

DC Resistance Inner Conductor

DC Resistance Outer Conductor

0.71 ohm/km @ 6 kV

0.59 ohm/km @ 6 kV

Attenuation

In Attached Table

Minimum Bending Radius for Multiple Bends

380 mm

Maximum Times of Bending

20

Minimum Bending Radius for Single Bend

200 mm

Bending Moment

45 N-m

Flat Plate Crush Pressure

2.1 kg/mm

Tensile Strength

3000 N

Recommended Clamp Spacing

1.0 m

Inner Conductor OD

13.01 mm

Diameter over Dielectric Material

33.80 mm

Outer Conductor OD

35.90 mm

Diameter over Jacket

39.20 mm

Unit Weight

1.18 kg/m

Inner Conductor

Normal Copper Tube

Dielectric

Foam PE

Color of Dielectric

White

Outer Conductor

Corrugated Copper Tube

Jacket Material

PE, (UL1518-1990)

Jacket Color

Black

Storage Temperature

from -70 °C to 80 °C

Operating Temperature

from -55 °C to 80 °C

Installation / Cutting / Re-packing Temperature

from -40 °C to 60 °C

Frequency (MHz)

Attenuation (dB/100m)

Average Power (kW)

100

0.87

11.70

200

1.20

8.12

300

1.50

6.52

450

1.87

5.22

800

2.59

3.78

900

2.77

3.53

1000

2.94

3.32

1500

3.73

2.62

1800

4.16

2.35

2000

4.43

2.21

2200

4.69

2.05

2500

5.08

1.92

3000

5.68

1.72
