2 Port，1 Fet X Pol 1710-2690MHz 90° 11dBi Antenna

2 Port，1 Fet X Pol 1710-2690MHz 90° 11dBi Antenna

Model No.: YLFX17279011
Code: 21624

U.S.＄ 0.00
0.00
Quantity：
Buy now
Add to cart


Model No.: YLFX17279011
Code: 21624

X Pol 1710-2690MHz 90°11dBi Antenna
Model No.: YLFX17279011  Code: 21624
Electrical Specifications
Frequency Range(MHz) 1710～2690
Polarization x
Half-power Horizontal Beamwidth(°) 90
Half-power Vertical Beamwidth(°) 30
Electrical down tilt(°) 0
Gain(dBi) 11
VSWR ≦ 1.5
PIM ≦ -150 dBc
Front to Back Ratio (dB) ≧ 23
Impedance(Ω) 50
Maximum Input Power(W) 100
Lightning Protection DC Ground
Mechanical Specifications
Connector Type 2 Din Female
Connector Position Bottom
Antenna Size(L×W×H)mm 245×120×72
Antenna Weight (Kg) 1.7
Installation Kits Weight (Kg) 1.0
Operating Temprature(℃) -30～60
Rated Wind Velocity(Km/h) 200

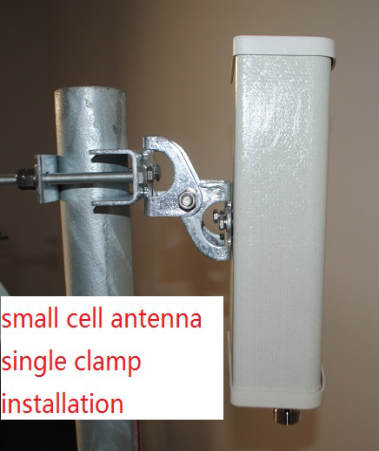

Mounting Features
Diameter of Installation Pole(mm) Φ50 ～70
Material
Reflector Material Cu Ag
Radome Material Fiberglass
Installation Kits Gavalized Steel
