Modle No.:YL2VX 1727 65 18 P2 1.4M
Code: 21262

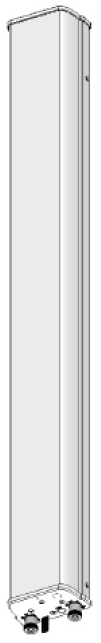

2 Port，2 VET X Pol 1710-2690 MHz, 65° 18dBi Panel Antenna
Modle No.:YL2VX 1727 65 18 P2 1.4M Code: 21262
Modle No.:YL2VX 1727 65 18 P2 1.4M Code: 21262
| Electrical Specifications | ||
| Frequency Range (MHz) | 1710～1880 | 1920-2690 |
| Polarization | ± 45 | ± 45 |
| Half-power H Beamwidth (°) | 65° | |
| Half-power V Beamwidth (°) | 7.5° | 6.5° |
| Gain (dBi) | 17.5 | 18 |
| Electrical downtilt (°) | 0～10 / 0-12 | |
| Manual or Additional RCU | ||
| First Up-lobe Suppression (dB) | 16 | 16 |
| VSWR | <1.5 | |
| IM.3rd order (2×43dBm) | <-107 | |
| Front-to-back Ratio (dB) | >30 | |
| Isolation (dB) | >30 | |
| Impedance (Ω) | 50 | |
| Maximum Input Power (W) | 300 | |
| Lightning Protection | Direct Grounded | |
| Mechanical Specifications | ||
| Connector Type | 2×7/16 DIN Female | |
| Connector Position | Bottom | |
| Antenna Size (L × W × H) mm | 1400×155×95 | |
| Antenna Weight (kg) | 7.5 | |
| Weight of Fixing Kits (kg) | 3.5 | |
| Rated Wind Velocity (m/s) | 60 | |
| Operating Temprature (℃) | -40 ～ 70 | |
| Mounting Features | ||
| Diameter of Installation Pole (mm) | Φ50 ～ Φ110 | |
| Length of Installation Pole (mm) | ≥ 2000 | |
| Mechanical Adjustable Angle Range (°) | 0 or 0 ～ 10 Optional | |
| Material | ||
| Reflector Material | Aluminum Alloy | |
| Radiating Element Material | Cu Ag | |
| Radome Material | Fiberglass | |
| Installation Kits | Galvanized Steel | |
