Modle No.:YLVX 07 30 18 P2 1.5M
Code: 19233

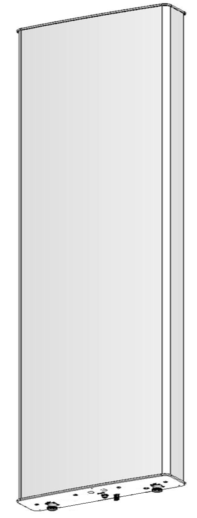

2 Port，1 VET X Pol 790-960 MHz, 33° 18dBi Panel Antenna
Modle No.:YLVX 07 30 18 P2 1.5M Code: 19233
Modle No.:YLVX 07 30 18 P2 1.5M Code: 19233
| Electrical Specifications | |
| Frequency Range (MHz) | 790～960 |
| Polarization | ± 45 |
| Half-power H Beamwidth (°) | 30 |
| Half-power V Beamwidth (°) | 15° |
| Gain (dBi) | 17.5 |
| Electrical downtilt (°) | 0-10 |
| First Up-lobe Suppression (dB) | 15 |
| VSWR | <1.5 |
| PIM (dBc) | <-150 |
| Front-to-back Ratio (dB) | >30 |
| Isolation (dB) | >30 |
| Impedance (Ω) | 50 |
| Maximum Input Power (W) | 500 |
| Lightning Protection | Direct Grounded |
| Mechanical Specifications | |
| Connector Type | 2×7/16 DIN Female |
| Connector Position | Bottom |
| Tilt Adjustment | RCU and Manual |
| Antenna Size (L × W × H) mm | 1450×495×198 |
| Antenna Weight (kg) | 28 |
| Weight of Fixing Kits (kg) | 8.5 |
| Rated Wind Velocity (m/s) | 60 |
| Operating Temprature (℃) | -40 ～ 70 |
| Mounting Features | |
| Diameter of Installation Pole (mm) | Φ50 ～ Φ110 |
| Length of Installation Pole (mm) | ≥ 3000 |
| Mechanical Adjustable Angle Range (°) | 0 or 0 ～ 10 Optional |
| Material | |
| Reflector Material | Aluminum Alloy |
| Radiating Element Material | Cu Ag |
| Radome Material | Fiber Glass |
| Installation Kits | Galvanized Steel |
