Model No.: YLLG-0727-8D
Code: 22959

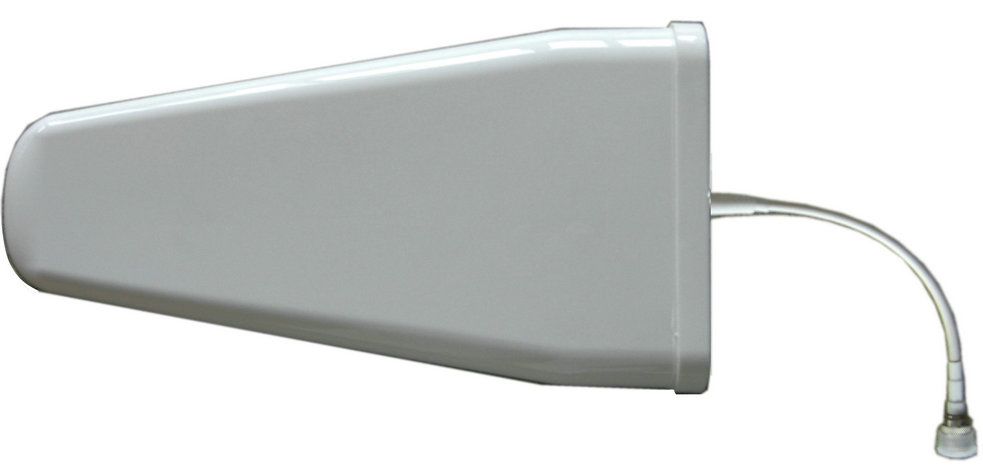

1 Port, V Pol 698-960/1710-2690MHz, 10dBi Log Periodic Directional Antenna
Model No.: YLLG-0727-10D Code: 22959
Model No.: YLLG-0727-10D Code: 22959
| Electrical Specifications | ||
| Frequency Range (MHz) | 790-960 / 1710-2690 | |
| Polarization | Vertical | |
| Half-power Horizontal Beamwidth (°) | 75 @ 790-960 MHz | |
| 60 @ 1710-2690 MHz | ||
| Half-power Vertical Beamwidth (°) | 55 @ 790-960 MHz | |
| 50 @ 1710-2690 MHz | ||
| Gain (dBi) | 9 ± 1 / 10 ± 1 | |
| Front to Back Ratio (dB) | ≥ 15 | |
| VSWR | ≤ 1.5 | |
| Impedance (Ω) | 50 | |
| Maximum Input Power (W) | 50 | |
| Mechanical Specifications | ||
| Connector Type | Din-Female | |
| Antenna Dimension (L × W × H) mm | 410 × 210 × 65 | |
| Antenna Weight (kg) | 1.1 | |
| Rated Wind Velocity (m/s) | 60 | |
| Operating Temprature (℃) | -40 - 55 | |
| Diameter of Installation Pole (mm) | Ф 40 - 50 | |
| Material | ||
| Radome Material | UV-Protected ABS | |
| Installation Kits Material | Stainless Steel (U-clip) | |
