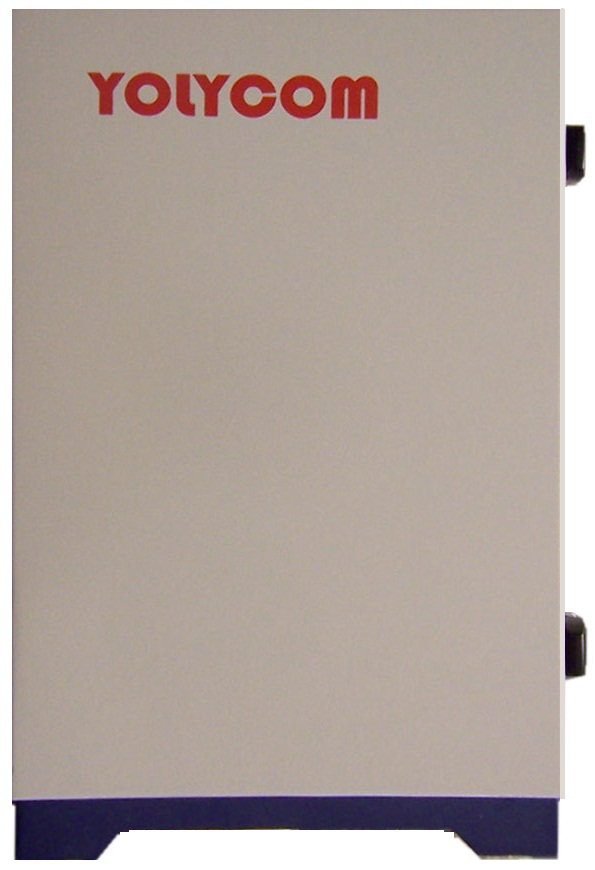

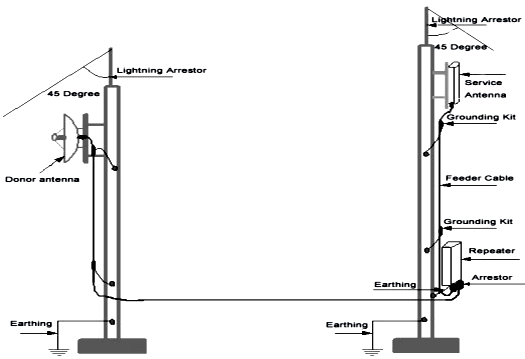

RF Repeater Band Selective GSM 900MHz 10/20 watt

Model No.: YLRPT-G09-BS40M
Model No.: YLRPT-G09-BS43M


U.S.$ 0.00
0.00
Quantity:
Buy now
Add to cart


Model No.: YLRPT-G09-BS40M
Model No.: YLRPT-G09-BS43M


RF Repeater Band Selective Specification



RF Repeater Band Selective

GSM900

Series Code:

YLRPT-G900-BS**##

Coverage Band & Power

GSM900 40/43dBm

Uplink & Downlink

890.2-899.8 MHz / 935.2-944.8 MHz

Model No.

YLRPT-G900-BS40M

YLRPT-G900-BS43M

Performance Data





Uplink Gain

95 ± 3 dB

Downlink Gain

100 ± 3 dB

Gain Adjustment

 30 at 1 dB step

ALC Range

10 dB

Max. Uplink Power Out

37 ± 1 dBm

40 ± 1 dBm

Max. Donlink Power Out

40 ± 1 dBm

43 ± 1 dBm

Max. Input Power

-32 dBm

System Delay

 5 uS

System Impedance

50 Ohm

RF Ports

N Female

Power Supply

AC220 or DC48





Quality Data



In-band Flatness

 3 dB (P-P)

Out-of-band Suppression

 -35 dBc for fc ± 500 KHz



 -40 dBc for fc ± 600 KHz



-45 dBc for fc ± 750 KHz



 -50 dBc for fc ± 1 MHz



 -60 dBc for fc ± 5M KHz

Sprirous Emission

 -30 dBm

Noise with Traffic Load

 4 dB

VSWR at Ports

 1.4

MTBF

50000 hr

Environmental and Mechanical Data

Working Temperature

-40  +55

Working Humidity

5%  85%

Water Protection

IP 65

Dimensions/Package

500*350*260 mm

560x390x390 mm

NW / GW

24 kg

30 kg

Monitoring and Control



Local Control

RS232 Port

Remote Control

GSM Modem

Software Version No.

YL-V3.593









Monitoring Features





Local Monitoring

RS232 Port





Local Configuration and Control Items



Input Parameter



Selection and Configuration of Channels



Set Output Power UL/DL



Set LNA Attenuation UL/DL



Set LNA Max Gain UL/DL



Control Parameter



Set UL/DL Gain



Output Power Switch



Over-temp Threshold



VSWR Threshold



Over Voltage Threshold



Low Voltage Threshold



Over Output Power Alarm Threshold



Low  Output Power Alarm Threshold







Remote Monitoring

Modem





Remote Configuration and Control Items



Input Parameter



Amendment of Channel Selection



Set Output Power DL/DL



Set LNA Attenuation UP/DL



Set LNA Max Gain UP/DL



Control Parameter



Set UL/DL Gain



Output Power Switch



Over-temp Threshold



VSWR Threshold



Over Output Power alarm Threshold



Low Output Power alarm Threshold







Real Time Alarm

Alarm Items





VSWR



Power Amplifier Over Temperature



Over Power



Power Amplifier Fault



System Over Temperature



Over Voltage



Low Voltage



Stealth (Door Open)
