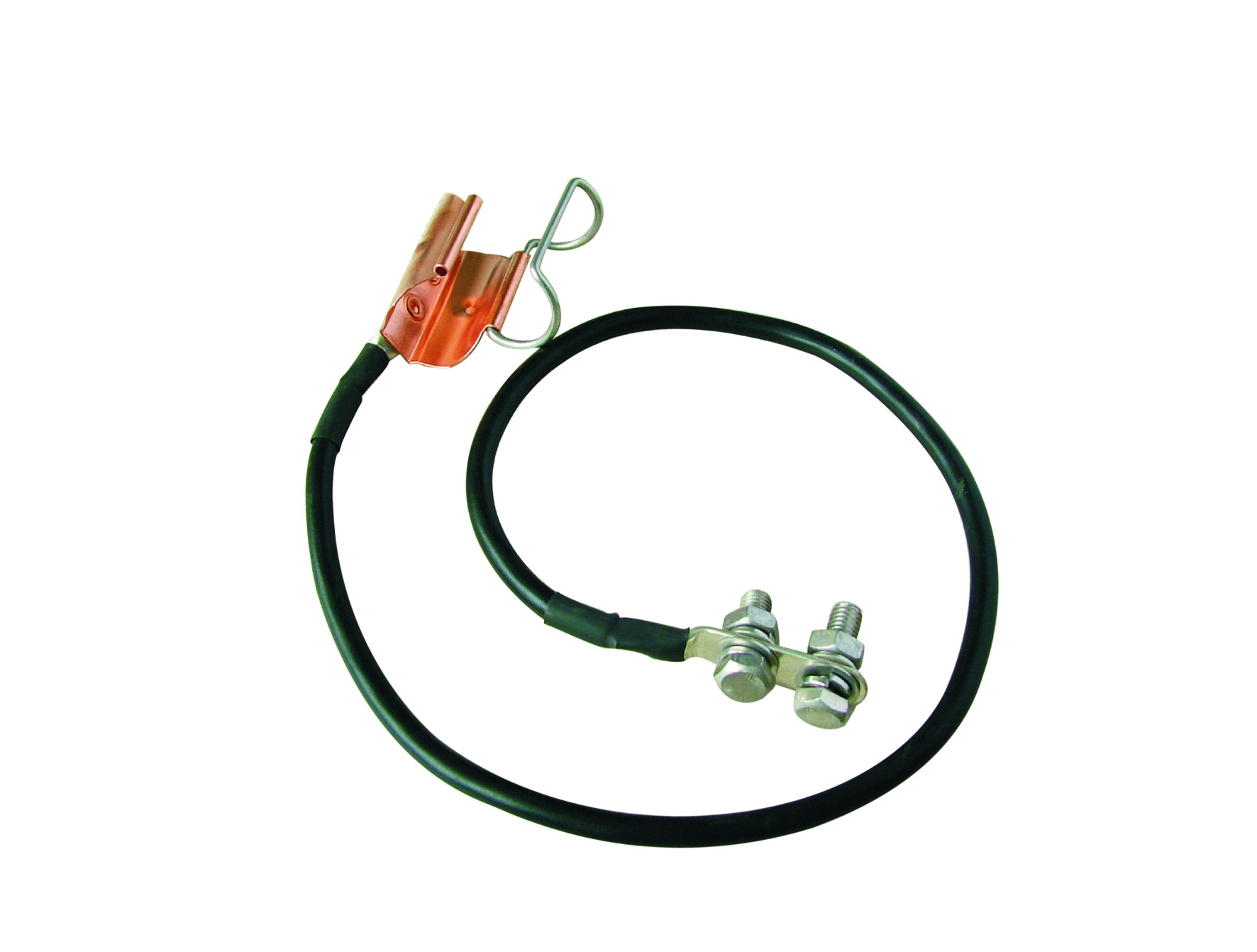

YOLYCOM outdoor Grounding Kit for 7/8 Corrugated Coaxial Cable Spring Type

Part Number: YL-JDX078-1610B


U.S.$ 0.00
0.00
Quantity:
Buy now
Add to cart


Part Number: YL-JDX078-1610B


Electrical Specifications

Peak Current

100,000 Amps

Current Handling Test Method

MIL-STD-1757

Lightning Protection Test Method

IEC-1024-1

Mechanical Specifications

Normal Size

7/8 Coaxial Corrugated Cable

Cable Contact Part

Spring Type (Copper Band and Stainless Steel Clamp)

Lug Type

2-hole M8 (with Screws), Tin-Coated Copper

Cable Length

1000 mm

Cable Diameter

16 mm2

Cable Material

Copper

Insulator Material

PVC

Environmental Durability

Anti-Corrosion Level

≥ 500 Hours in Salt Spray Chamber

UV Resistance

1000 Hrs

Storage Temperature

-40°C to + 60°C

Operating Temperature

-40°C to + 85°C

Packing Information

Standard Package Includes Metal Hardware and Sealing Material

Sealing Material: PVC Tape 5 cm x 1000 cm x 0.18mm,

Butyl Rubber Tape: 7 cm x 60 cm x 3mm



Package Quantity

1 Set in a Bag

Unit Weight of Metal Parts             0.151 kg

Unit Weight including Sealing Material   0.405 kg
