Low Smoke, Halogen-Free RF Jumper Cable 1/2“ Super Flexible Din Male Straight

Low Smoke, Halogen-Free RF Jumper Cable 1/2“ Super Flexible Din Male Straight

1-15 Meters Jumper Part Number: YLTX-B12DMDM-1.0/.....15.0

U.S.＄ 0.00
0.00
Quantity：
Buy now
Add to cart


1-15 Meters Jumper Part Number: YLTX-B12DMDM-1.0/.....15.0


1. Jumper Cable Type:

l 1/2" Super Flexible(L = 1~15.0 +/- 0.1 meters)

l Low Smoke, Halogen-Free Coaxial Cable

l Connectors: Din-Male Straight & Din Male Straight

2. Specifications:

Electrical Features

Working Frequency

0 - 8.8 GHz

Characteristic Impedance

50±2Ω

Insulation Resistance

5000 MΩ

VSWR

≦1.1 (for 800-2200MHz)

≦1.15 (for 2200-3000MHz)


3rd Pass Intermodulation (2 x 43 dBm)

≦-159 dBc (for all cellular bands)

Velocity

84%

Rated Voltage

2.7 kV

Cut-off Frequency

> 8 GHz

Mechanical Specifications

Jacket Material

Black Polyethylene

Low Smoke Halogen Free

Smallest Bending Diameter( Single/Multiple)

25/35 mm

Tensile Strength

900 N

Torque Resistance

35 N.m

Length

6 meter

Weight

1.35 kg

Water Proof

IP68

Durability Specification

Re-Usable Times

100

Working Temperature

-40 ~ +85 ℃

3. Carton Size: 0.44x0.44x0.23m

4. Cable &Connector

Inner Conductor

Copper-Clad Aluminum

Dielectric

Foam PE

Color of Dielectric

White

Outer Conductor

Threaded Copper Tube

Jacket Material

Halogen Free, Flame Retardant Polyolefin (FR)

UV standard Resistance

IEC-60068-2-5 / IE-68-2-5

Jacket Color

Black

Peak Power

20 kW

Inner Conductor

QSn6.5-0.1, Silver Plated

Outer Conductor

HPb59-1, Trimental Plating(Copper-Tin-Zin)

Insulation

PTEE

Gasket

Silicon Rubber

Connector Insertion Loss

≤ 0.05dB

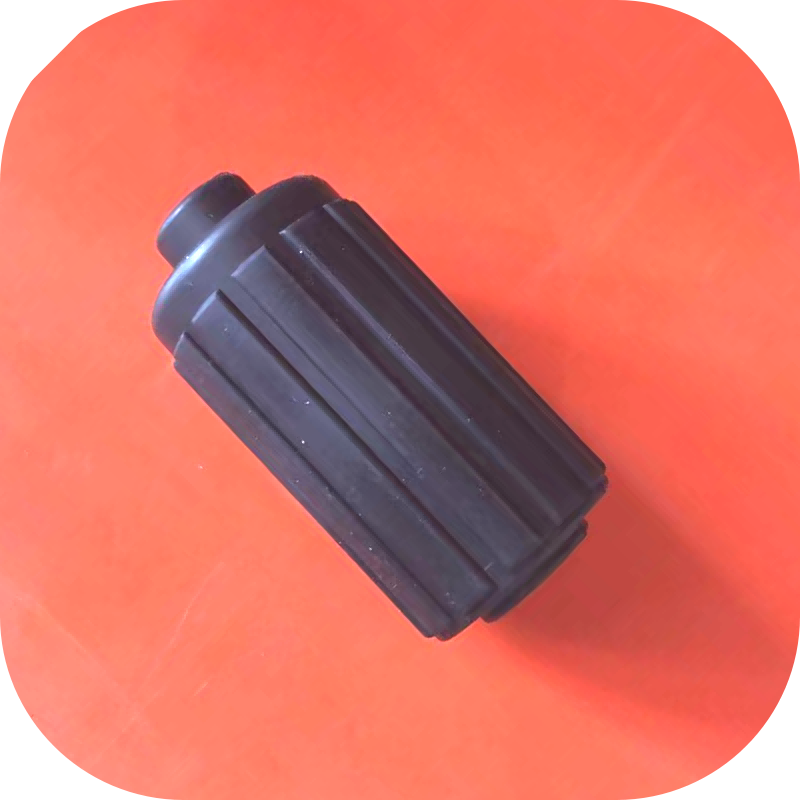

5. Optional waterproof rubber boots
