Low Pim Omni Celling Antenna
|
||
| Vertical Polarized indoor Ceiling Omni Antenna | ||
| Model No.: YLXD-0727-3L | ||
| Electrical Specifications | ||
| Frequency Range(MHz) | 698～960 | 1710-2700 |
| Polarization | Vertical | |
| Half-power Horizontal Beamwidth(°) | 360 | |
| Half-power Vertical Beamwidth(°) | 100 | 60 |
| Gain(dBi) | 3 | 5 |
| VSWR | ≤1.8 | ≤1.5 |
| Impedance(Ω) | 50 | |
| Maximum Input Power(W) | 100 | |
| PIM3rd (2x43dBm) | ≤-150dBc | |
| Lightning protection | Direct Ground | |
| Mechanical Specifications | ||
| Connector Type | N-Female | |

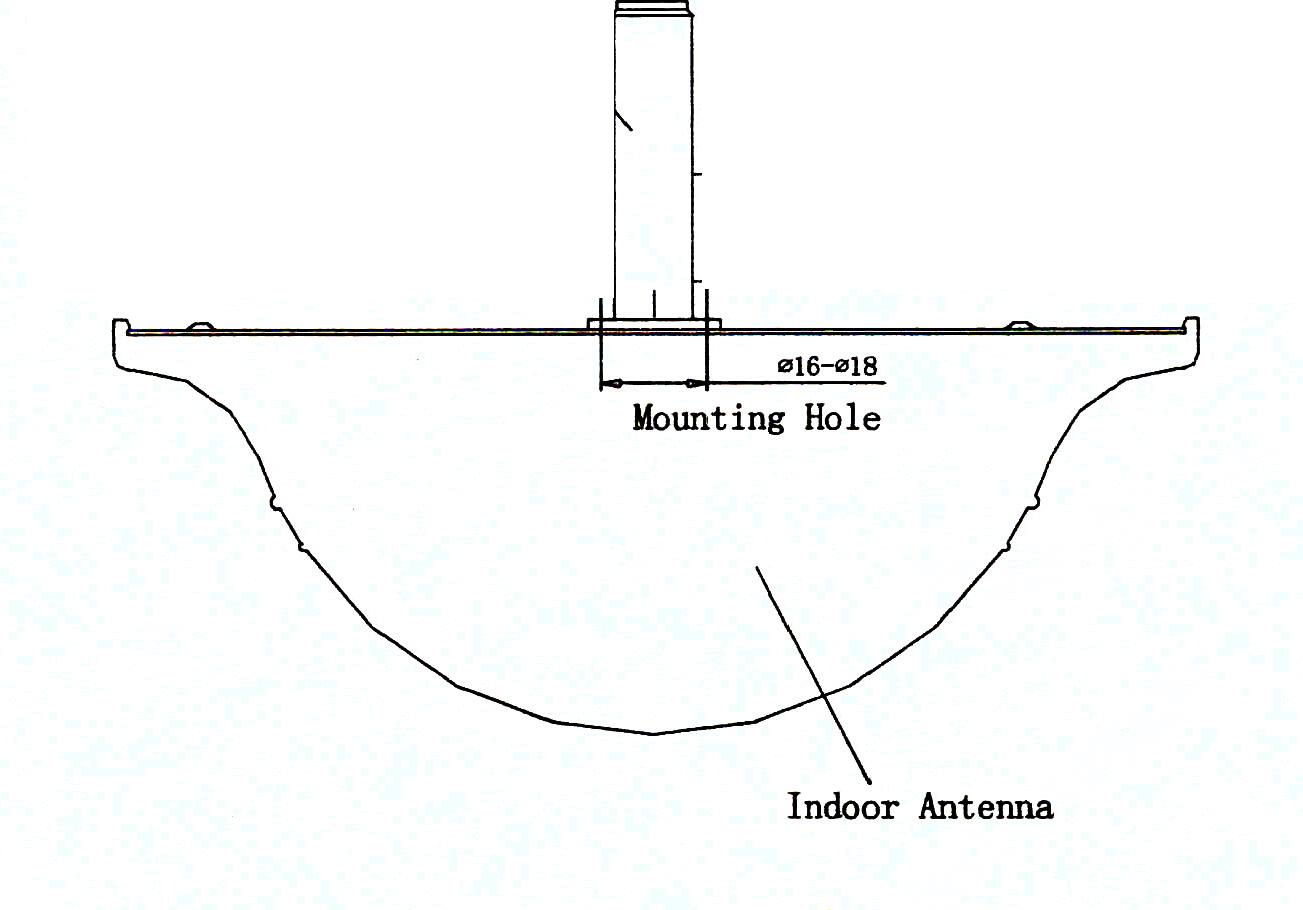

| Antenna Dimentions(HxD) | 115 x Dia204mm | |
| Antenna Weight(Kg) | 0.3 | |
| Weight of Fixing Kits(Kg) | 0.1 | |
| Operating Temprature(℃) | -55～65 | |
| Material | ||
| Material | Aluminum Alloy | |
| Installation Kits | Plastic | |
|
||
| Version 201112 www.yolycom.com | ||
