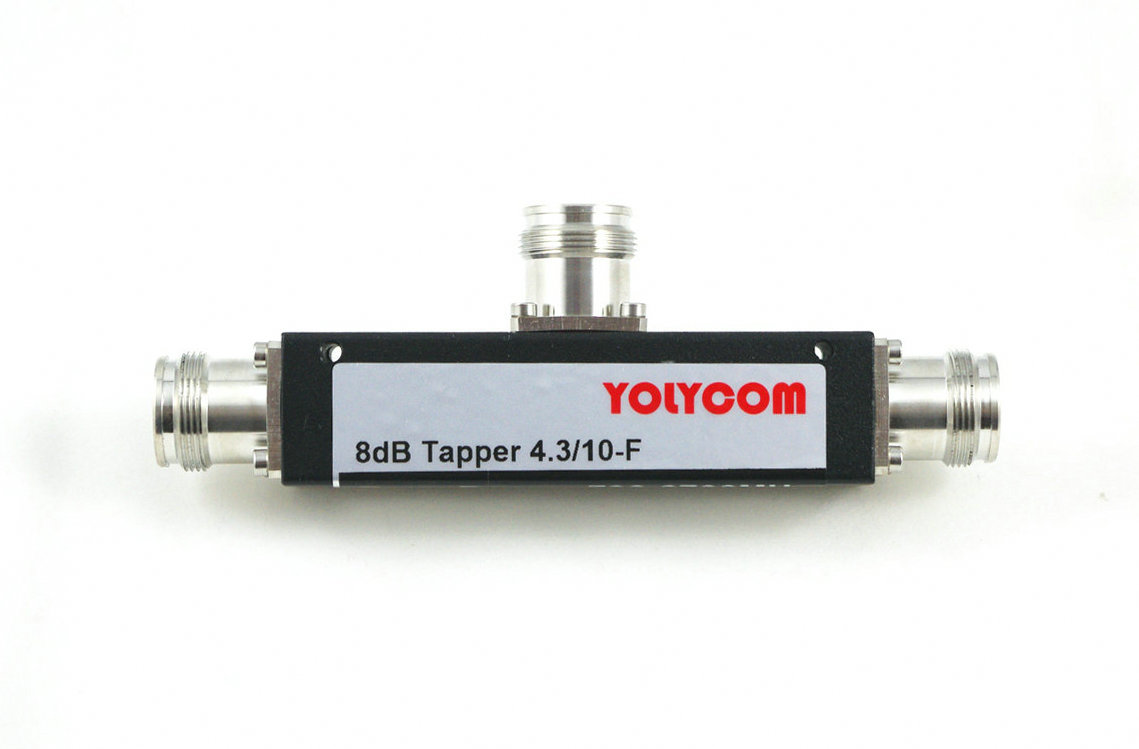

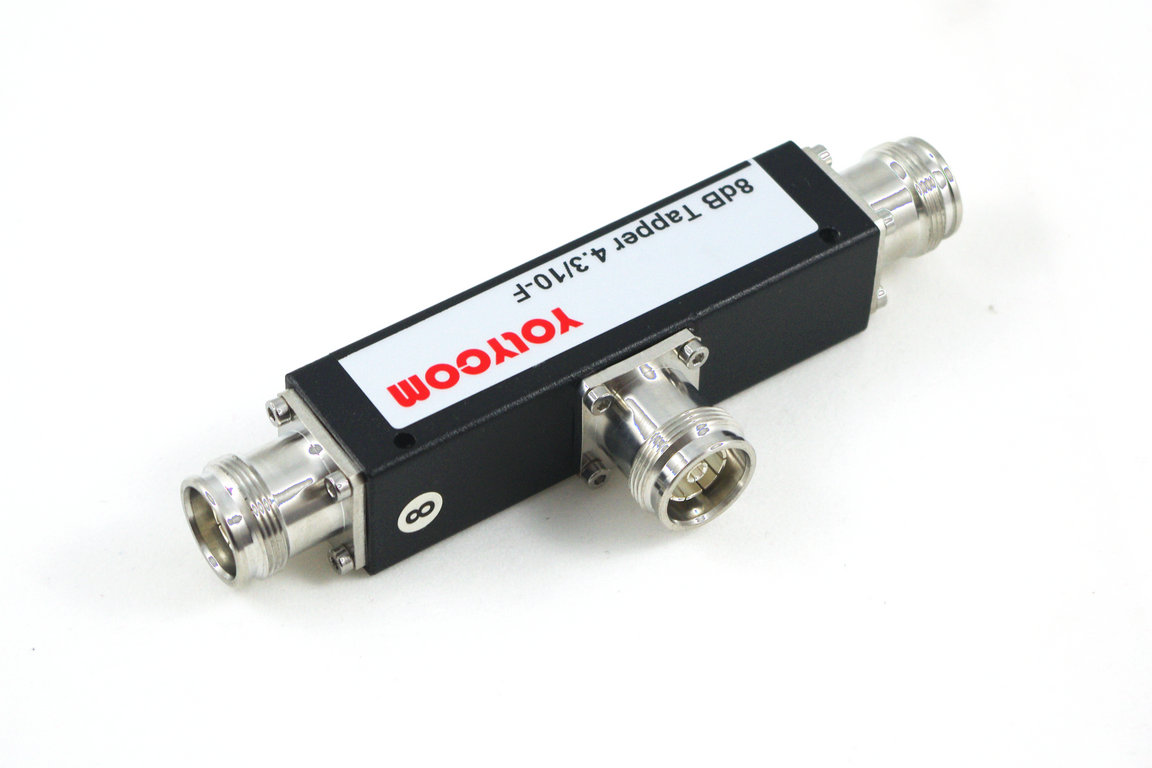

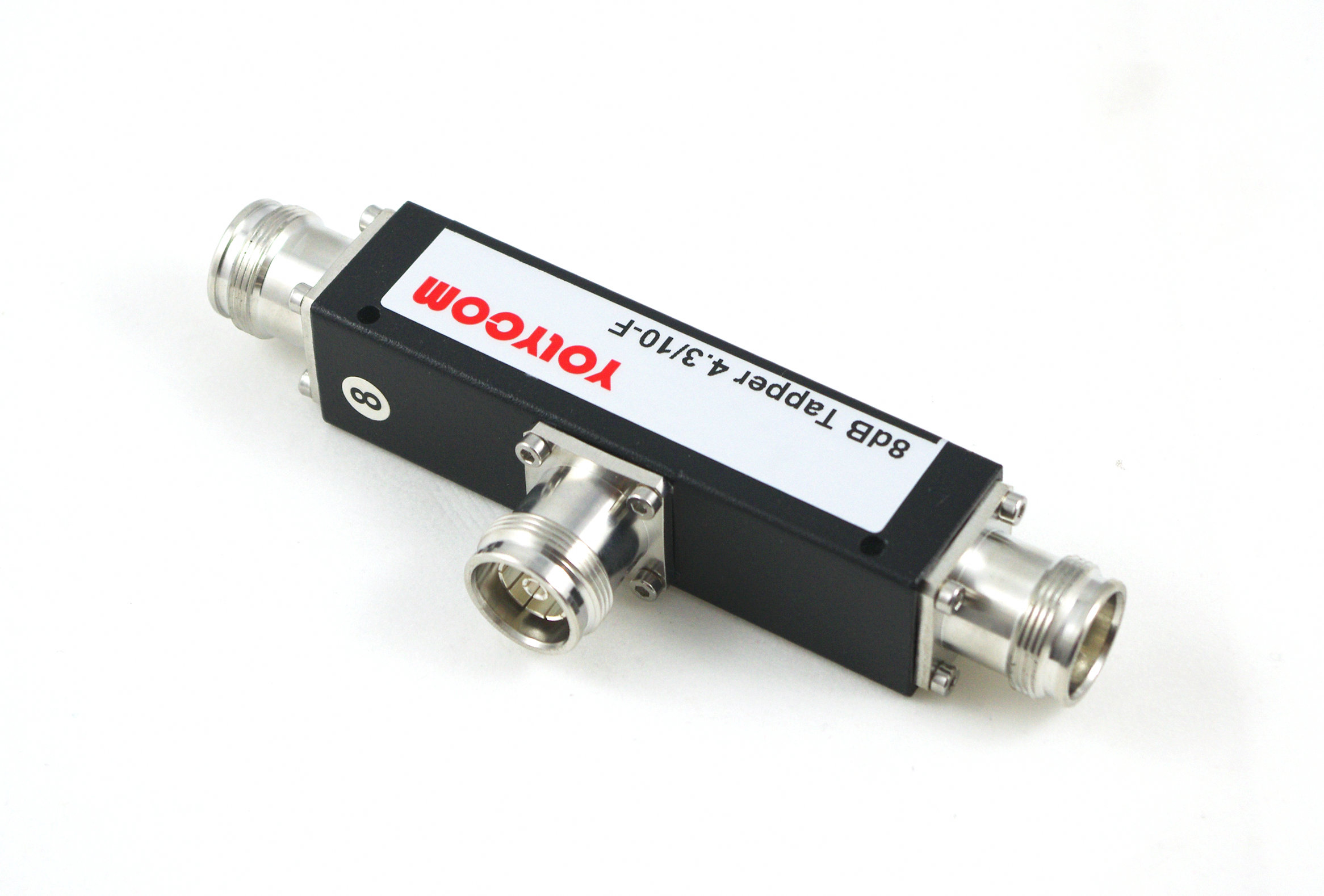

4.3/10 Mini Din Female Type RF Cavity Power Tapper 6-30dB

4.3/10 Mini Din Female Type RF Cavity Power Tapper 6-30dB

6dB loss Model No.:YLGFTP-07/27-C4310-6 Code: 62707
10dB loss Model No.: YLGFTP-07/27-C4310-10 Code: 62709
20dB loss Model No.: YLGFTP-07/27-C4310-20 Code: 62711
30dB loss Model No.: YLGFTP-07/27-C4310-30 Code: 62712

U.S.$ 50.00
0.00
Quantity:
Buy now
Add to cart


6dB loss Model No.:YLGFTP-07/27-C4310-6 Code: 62707
10dB loss Model No.: YLGFTP-07/27-C4310-10 Code: 62709
20dB loss Model No.: YLGFTP-07/27-C4310-20 Code: 62711
30dB loss Model No.: YLGFTP-07/27-C4310-30 Code: 62712


6dB loss Model No.:YLGFTP-07/27-C4310-6 Code: 62405
Electrical Specifications
Frequency Range(MHz) 698960&17102700
Tap Loss Input-P1 (dB) -1.25
Tap Loss Input-P2 (dB) -6
Insertion Loss (dB) 0.1
VSWR 1.4
IM.3rd order (dBc) 2×43dBm -150
Power (W) 300, Avg
Impedance (Ω) 50
Mechanical Specifications
Input Connector 4.3-10 Female
Output Connector 2 X 4.3-10 Female

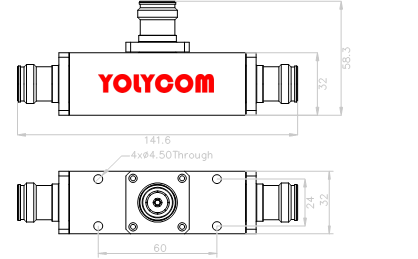

Demensions (L×W×H) mm 138 X 46 X 25
Weight (Kg) 0.2
Operating Temprature () -40+60
Humidity(%) 0100
Application IP65
Material&Plating
Inner Conductor Material Spring Bronze
Inner Conductor Plating Silver Plated
Outer Metel Material Aluminum

10dB loss Model No.: YLGFTP-07/27-C4310-10 Code: 62406
Electrical Specifications
Frequency Range(MHz) 698960&17102700
Tap Loss Input-P1 (dB) -0.5
Tap Loss Input-P2 (dB) -10.5
Insertion Loss (dB) 0.1
VSWR 1.3
IM.3rd order (dBc) 2×43dBm -150
Power (W) 300, Avg
Impedance (Ω) 50
Mechanical Specifications
Input Connector 4.3-10 Female
Output Connector 2 X 4.3-10 Female
Demensions (L×W×H) mm 138 X 46 X 25
Weight (Kg) 0.2
Operating Temprature () -40+60
Humidity(%) 0100
Application IP65
Material&Plating
Inner Conductor Material Spring Bronze
Inner Conductor Plating Silver Plated
Outer Metel Material Aluminum

20dB loss Model No.:
YLGFTP-07/27-C4310-20 Code: 62407

Electrical Specifications
Frequency Range(MHz) 698960&17102700
Tap Loss Input-P1 (dB) -0.1
Tap Loss Input-P2 (dB) -20
Insertion Loss (dB) 0.1
VSWR 1.3
IM.3rd order (dBc) 2×43dBm -150
Power (W) 300, Avg
Impedance (Ω) 50
Mechanical Specifications
Input Connector 4.3-10 Female
Output Connector 2 X 4.3-10 Female
Demensions (L×W×H) mm 138 X 46 X 25
Weight (Kg) 0.2
Operating Temprature () -40+60
Humidity(%) 0100
Application IP65
Material&Plating
Inner Conductor Material Spring Bronze
Inner Conductor Plating Silver Plated
Outer Metel Material Aluminum

30dB loss Model No.:
YLGFTP-07/27-C4310-30 Code: 62408

Electrical Specifications
Frequency Range(MHz) 698960&17102700
Tap Loss Input-P1 (dB) -0.1
Tap Loss Input-P2 (dB) -30
Insertion Loss (dB) 0.1
VSWR 1.3
IM.3rd order (dBc) 2×43dBm -150
Power (W) 300, Avg
Impedance (Ω) 50
Mechanical Specifications
Input Connector 4.3-10 Female
Output Connector 2 X 4.3-10 Female
Demensions (L×W×H) mm 138 X 46 X 25
Weight (Kg) 0.2
Operating Temprature () -40+60
Humidity(%) 0100
Application IP65
Material&Plating
Inner Conductor Material Spring Bronze
Inner Conductor Plating Silver Plated
Outer Metel Material Aluminum
