2 Port，1 VET X Pol 790-960MHz, 65° 15dBi Panel Antenna

2 Port，1 VET X Pol 790-960MHz, 65° 15dBi Panel Antenna

Modle No.: YLVX 0709 65 15 P2 1.3M
Code: 19234

U.S.＄ 0.00
0.00
Quantity：
Buy now
Add to cart


Modle No.: YLVX 0709 65 15 P2 1.3M
Code: 19234

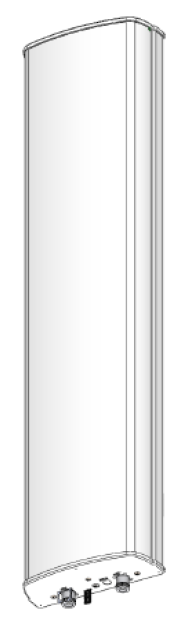

X Pol. 790-960 65° 15dBi Panel Antenna   VET
Model No.: YLVX 0709 65 15 P2 1.3M Code: 19234
Electrical Specifications
Frequency Range (MHz) 790～960
Polarization ± 45
Half-power H Beamwidth (°) 65°
Half-power V Beamwidth (°) 14°
Gain (dBi) 15
Electrical downtilt (°) 0-10
First Up-lobe Suppression (dB) 15
VSWR <1.5
IM.3rd order (2×43dBm) <-107
Front-to-back Ratio (dB) >25
Isolation (dB) >30
Impedance (Ω) 50
Maximum Input Power (W) 500
Lightning Protection Direct Grounded
Mechanical Specifications
Connector Type 2×7/16 DIN Female
Connector Position Bottom
Antenna Size (L × W × H) mm 1321×300×110
Antenna Weight (kg) 13
Weight of Fixing Kits (kg) 3.5
Rated Wind Velocity (m/s) 60
Operating Temprature (℃) -40 ～  70
Mounting Features
Diameter of Installation Pole (mm) Φ50 ～ Φ110
Length of Installation Pole (mm) ≥ 3000
Mechanical Adjustable Angle Range (°) 0 or 0 ～ 10 Optional
Material
Reflector Material Aluminum Alloy
Radiating Element Material Cu Ag
Radome Material Fiberglass
Installation Kits Galvanized Steel or Stainless Steel
