Modle No.: YLVX1727 33 21 P2 1.3M
Code: 21261

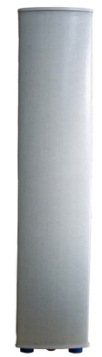

2 Port，1 VET X Pol 1710-2690 MHz, 33° 21dBi Panel Antenna
Modle No.: YLVX1727 33 21 P2 1.3M Code: 21261
Modle No.: YLVX1727 33 21 P2 1.3M Code: 21261
| Electrical Specifications | ||||
| Frequency Range (MHz) | 1710～2690 | |||
| 1710-2170 | 2300-2500 | 2500-2690 | ||
| Polarization | ± 45 | ± 45 | ± 45 | |
| Half-power H Beamwidth (°) | 33° | 33° | 33° | |
| Half-power V Beamwidth (°) | 7.5° | 6.5 | 6° | |
| Gain (dBi) | 20.5 | 20.8 | 21 | |
| Electrical downtilt (°) | 0～10 | |||
| First Up-lobe Suppression (dB) | 18 | 18 | 16 | |
| VSWR | <1.5 | <1.5 | <1.5 | |
| IM.3rd order (2×43dBm) | <-107 | <-107 | <-107 | |
| Front-to-back Ratio (dB) | >28 | >26 | >25 | |
| Isolation (dB) | >30 | >30 | >30 | |
| Impedance (Ω) | 50 | |||
| Maximum Input Power (W) | 300 | |||
| Lightning Protection | Direct Grounded | |||
| Mechanical Specifications | ||||
| Connector Type | 2×7/16 DIN Female | |||
| Connector Position | Bottom | |||
| Tilt Adjustment | Manual or RCU | |||
| Antenna Size (L × W × H) mm | 1390×265×88 | |||
| Antenna Weight (kg) | 12 | |||
| Weight of Fixing Kits (kg) | 3.5 | |||
| Rated Wind Velocity (m/s) | 60 | |||
| Operating Temprature (℃) | -40 ～ 70 | |||
| Mounting Features | ||||
| Diameter of Installation Pole (mm) | Φ50 ～ Φ110 | |||
| Length of Installation Pole (mm) | ≥ 2000 | |||
| Mechanical Adjustable Angle Range (°) | 0 or 0 ～ 10 Optional | |||
| Material | ||||
| Reflector Material | Aluminum Alloy | |||
| Radiating Element Material | Cu Ag | |||
| Radome Material | Fiberglass | |||
| Installation Kits | Galvanized Steel or Stainless Steel | |||
