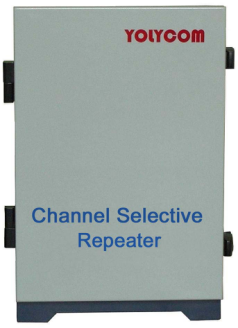

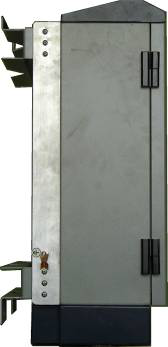

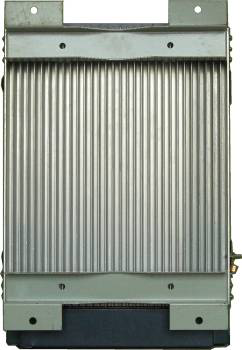

Channel Selective DCS1800 WCDMA2100 MHz Dual Band 20 watt / 20 watt

Model No.: YLRPT-0921-CSA43YS


U.S.$ 0.00
0.00
Quantity:
Buy now
Add to cart


Model No.: YLRPT-0921-CSA43YS


Channel Selective DCS1800 WCDMA2100 MHz Dual Band 20 watt / 20 watt








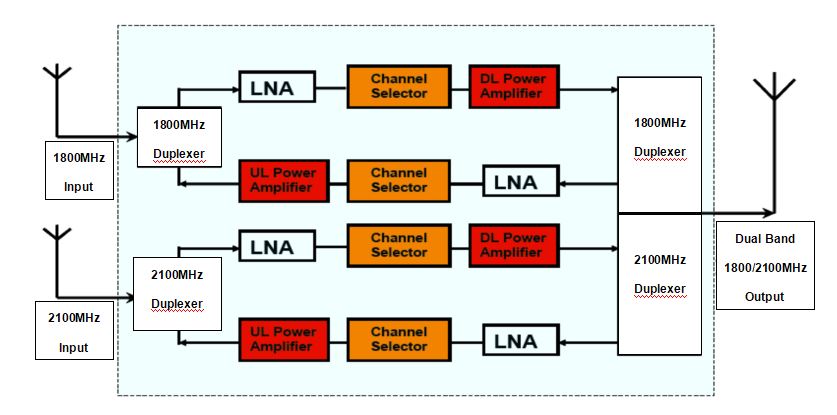

Coverage Band

GSM1800

WCDMA 2100



Rx: 1710-1785 MHz

Rx: 1940-1955MHz



Tx: 1805-1880 MHz

Tx: 2130-2145MHz

Selectable Channels

1 - 2

1 - 2



Analog Type

Analog Type

Performance Data





Uplink Gain

90 ± 2 dB

Downlink Gain

95 ± 2 dB

Gain Adjustment

≥ 30 at 1 dB step

ALC Range

10 dB

Max. Uplink Power Out

33 ± 1 dBm

Max. Downlink Power Out

43 ± 1 dBm

Max. Input Power

10 dBm

System Delay

≤ 5 uS

Call Set-up Time

≤ 10 S



System Impedance

50 Ohm

RF Ports

N Female

Power Supply

AC220 or DC48







Quality Data





In-band Flatness

≤ 3 dB (P-P)

In-band Spurious Emission

≤ -25 dBm / 30 KHz

Out-of-band Suppression

≤ -38 dBc / 30 KHz (1.98 MHz away) Uplink



≤ -44 dBc / 30 KHz (1.98 MHz away) Downlink



≤ -40 dBc / 30 KHz (2.5 MHz away from Working Band)



≤ -60 dBc / 30 KHz (10 MHz away from Working Band)

Out-of-band Spurious Emission

≤ -36 dBm (9 KHz - 1 GHz)



≤ -30 dBm (1 - 12.75 GHz)

Wave Quality

≥ 0.980 for Uplink



≥ 0.980 for Downlink

RF Energy Concentration

≥ 99% in Channel

Noise

≤ 5 dB

VSWR at Ports

≤ 1.5

IMD Attenuation In-band

≤ -15 dBm / 30 KHz

IMD Attenuation Out-of-band

≤ -36 dBm / 30 KHz for 9 KHz - 1 GHz



≤ -30 dBm / 30 KHz for 1 GHz - 12.75 GHz

MTBF

50000 hr







Monitoring Features





Local Monitoring

RS232 Port





Local Configuration and Control Items



Input Parameter



Selection and Configuration of Channels



Set Output Power UL/DL



Set LNA Attenuation UL/DL



Set LNA Max Gain UL/DL



Control Parameter



Set UL/DL Gain



Output Power Switch



Over-temp Threshold



VSWR Threshold



Over Voltage Threshold



Low Voltage Threshold



Over Output Power Alarm Threshold



Low Output Power Alarm Threshold







Remote Monitoring

Modem





Remote Configuration and Control Items



Input Parameter



Amendment of Channel Selection



Set Output Power UL/DL



Set LNA Attenuation UL/DL



Set LNA Max Gain UL/DL



Control Parameter



Set UL/DL Gain



Output Power Switch



Over-temp Threshold



VSWR Threshold



Over Output Power alarm Threshold



Low Output Power alarm Threshold







Real Time Alarm

Alarm Items





VSWR





Power Amplifier Over Temperature



Over Power



Power Amplifier Fault



System Over Temperature



Over Voltage



Low Voltage



Stealth (Door Open)





Environmental and Mechanical Data



Working Temperature

-25  +55

Working Humidity

5%  95%

Water Proof

IP65

Dimensions

630*450*250 mm

Weight

36 kg
