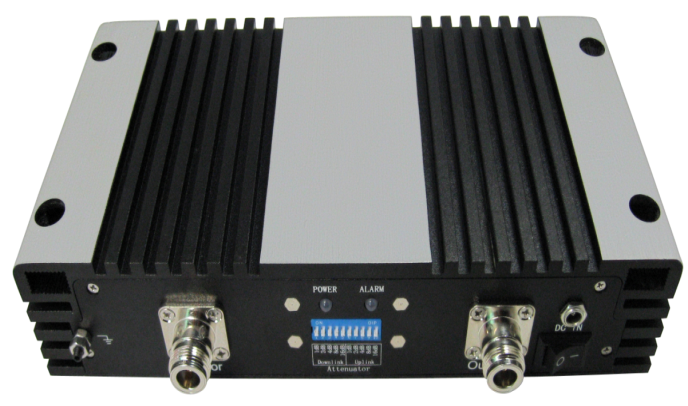

GSM/DCS/WCDMA Tri Band 20dBm Repeater

Model No.:  YLTE-900/1800/2100-PICO20A


U.S.$ 0.00
0.00
Quantity:
Buy now
Add to cart


Model No.:  YLTE-900/1800/2100-PICO20A


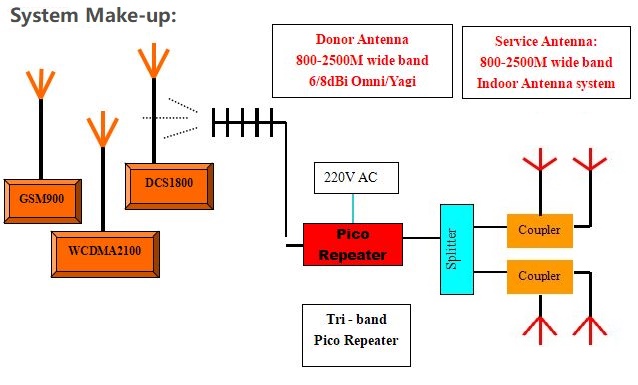

  •  System Specification:

Electrical specification

GSM900

DCS1800

WCDMA

Frequency Range

Uplink

907.4 – 914.8MHz

1710.2 – 1717.4 MHz
and 1730 - 1745 MHz

1955 – 1970 MHz

Downlink

 952.4 – 959.8MHz

1805.2 – 1812.4 MHz
and 1825 -1840 MHz *

2145 – 2160MHz

Bandwidth

available upon request

Output Power

UL10dBm ; DL20dBm

Gain

UL65dB ; DL70dB

Manual Gain Control

31dB in step of 1dB

Auto Level Control

20dB

Gain Flatness

3dB (P-P)

3dB (P-P)

2dB/3.84MHz

Out of Band Gain









f_offset



±400KHz

<50dB

±400KHz

<50dB

2.7f_offset3.5MHz

<60dB

±600KHz

<40dB

±600KHz

<40dB

3.5f_offset7.5MHz

<45dB

±1MHz

<35dB

±1MHz

<35dB

7.5f_offset12.5MHz

<45dB

±5MHz

<25dB

±5MHz

<25dB

12.5f_offset

<35dB

Intermodulation &
Spurious Emission

UL-36dBm (9KHz~1GHz)   DL:-40dBC (9KHz~1GHz)

Comply with 3GPP TS 25.106

UL-30dBm(1GHz~12.75GHz)  DL-40dBc(1GHz~12.75GHz)

Spurious Emission Mask

---

---

Comply with 3GPP TS 25.106

Modulation Accuracy

---

---

 12.5%

Peak Code Domain Error

---

---

-35dB@Spreading Factor 256

Noise Figure

<8dB

ACRR

---

---

20dB@±5MHz& ±10MHz

Frequency Stability

0.01ppm

Max.Input Power

0dBm

Group Delay

<5uS

VSWR

2.0

LED  Alarm

Standard

LED indication

Power

DC ON/OFF

Alarm LED

Orange @ ALC 1~5dB, Red @ ALC 20dB~25dB,

Mechanical  Specifications: Standard

I /O Port

N-Female

Impedance

50 ohm

Operating Temperature

-25 ºC ~+55 ºC

Environment Conditions

IP40

Dimensions

250x420x53mm

Weight

 9Kg

Power Supply

Input AC90~264V,output DC12V / 7A
