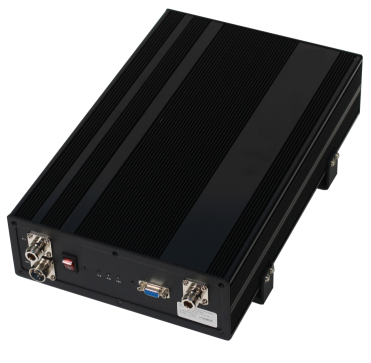

Model No. YLRPT-W1800/2100-26AIS
l Model No. YLRPT-W1800/2100-26AIS
Electrical specification |
LTE1800 |
WCDMA |
|||
Frequency Range |
Uplink |
1725 – 1740 MHz |
1950 – 1980 MHz |
||
Downlink |
1820 – 1835 MHz |
2140 – 2170MHz |
|||
Bandwidth |
15MHz |
30MHz |
|||
Maxi. Output Power |
UL 24dBm ; DL 26dBm |
UL 24dBm ; DL 26dBm |
|||
Maxi. Gain |
82dB (UL/ DL) |
82dB (UL/ DL) |
|||
Gain Control |
30dB in step of 1dB |
30dB in step of 1dB |
|||
Auto Level Control |
≥20dB |
|
|||
Gain Flatness |
≤3dB (P-P) |
≤3dB (P-P) |
|||
Out of Band Gain |
f_offset |
|
|||
2.7≦f_offset<3.5MHz |
<60dB |
||||
3.5≦f_offset<7.5MHz |
<45dB |
||||
7.5≦f_offset<12.5MHz |
<45dB |
||||
12.5≦f_offset |
<35dB |
||||
Intermodulation & |
Comply with 3GPP TS 25.106 |
Comply with 3GPP TS 25.106 |
|||
Active Inter-modulation (dBc) |
UL ≤ -43 @ 2-tone x 21 dBm DL ≤ -46 @ 2-tone x 24 dBm |
UL ≤ -43 @ 2-tone x 21 dBm DL ≤ -46 @ 2-tone x 24 dBm |
|||
Modulation Accuracy |
<1dB @1-20dB; <1.5dB @≥20dB |
<1dB @1-20dB; <1.5dB @≥20dB |
|||
Peak Code Domain Error |
≦-35dB@Spreading Factor 256 |
≦-35dB@Spreading Factor 256 |
|||
Noise Figure |
< 6 dB |
||||
ACRR |
33dB@±5MHz& ±10MHz |
33dB@±5MHz& ±10MHz |
|||
Frequency Stability |
≦0.01ppm |
||||
Max.Input Power |
0dBm |
||||
Group Delay |
< 8 µs |
||||
VSWR |
≦2.0 |
||||
LED Alarm |
Standard |
||||
LED indication |
Power |
DC ON/OFF |
|||
Alarm LED |
If alarmed, the alarm LED will show red. |
||||
Mechanical Specifications: |
Standard |
||||
I /O Port |
N-Female |
||||
Impedance |
50 ohm |
||||
Operating Temperature |
-25 ºC ~+55 ºC |
||||
Environment Conditions |
IP40 |
||||
Dimensions |
T.B.D |
||||
Weight |
≤ 9Kg |
||||
Power Supply |
Input AC175~265V,output DC12V |
Information in this document is subject to change without notice.
Please contact Yolycom or local agents for confirmation before a sales contract.

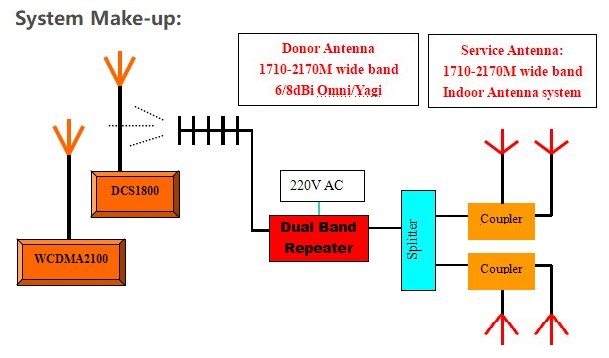

l System Features:
1) High system gain.
2) Full duplex and double-end design, external power supply, and convenient installation.
3) ALC technology with auto-steady function adopted.
4) Indicators: Power, work and alarm.
5) Better intermodulation and spuriousness suppression.
6) System reliability conforms to GB6993-86 standards.
7) Electromagnetic compatibility conforms to ETS300 609-4 standards.
