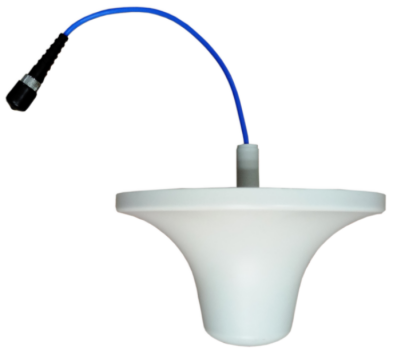

Model No.: YLXD0738-A4L
Code: 22957
Electrical Specifications
|
Frequency Range (MHz): |
790-960 |
1710-2700 |
3400-3800 |
|
Horizontal Beam Width |
360 |
360 |
360 |
|
Vertical Beam Width |
90 |
40 |
30 |
|
Polarization |
Vertical |
Vertical |
Vertical |
|
Gain (dBi): |
2.5 |
5 |
6 |
|
VSWR |
≤1.5 |
≤1.5 |
≤1.5 |
|
PIM (3RD Order 2x43dBm) dBc |
-153 |
-153 |
-153 |
|
Max. Power Per Port (W): |
50 |
||
|
Impedance (ohm): |
50 |
||
|
Lightning Protection: |
DC Grounded |
||
|
Connector Type: |
4.3-10 Female |
||
Mechanical Data
|
Antenna Dimensions (mm): |
Φ202×115 |
|
Antenna Net Weight/Bracket (kg): |
0.36 |
|
Radome Material: |
ABS white RAL9003 |
|
Operational Temperature |
-55～60℃ |
|
Operational Humidity |
< 95％ |
|
Mounting |
Ceiling |
|
|
|
|
|
|

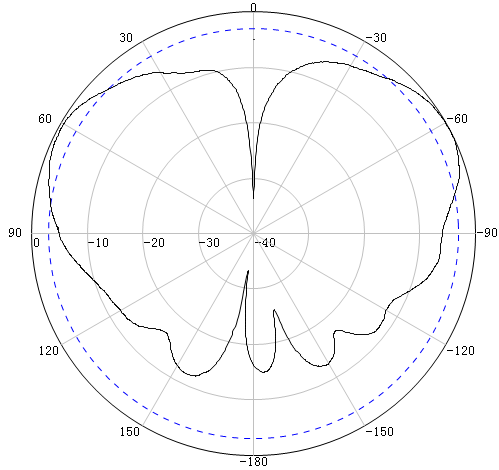

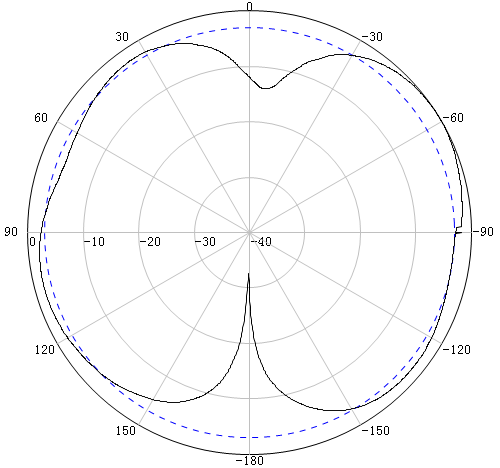

Azimuth |
Elevation(Low band) |
Elevation(High band 1710-2700) |
Elevation(High band 3400-3800) |
