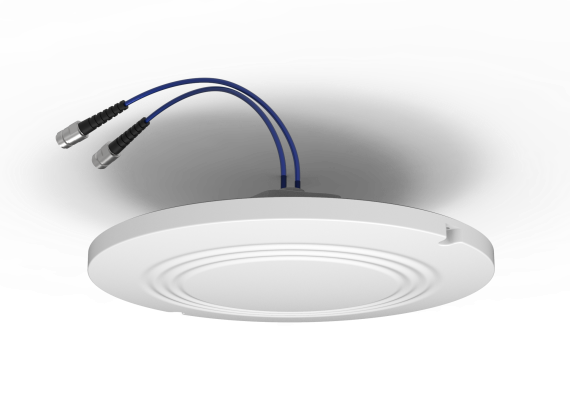

Dual Pol 2 Port 4.3-10 Ceiling Mount Antenna 790-960/1710-2700/3400-3800MHz

Model No.: YLXD0738-X5L

Code: 22958

U.S.$ 0.00
0.00
Quantity:
Buy now
Add to cart


Model No.: YLXD0738-X5L

Code: 22958

Electrical Specifications

Frequency Range (MHz):

790-960

1710-2700

3300-3800

Horizontal Beam Width

360

360

360

Vertical Beam Width

90

40

30

Polarization

X

X

X

Gain (dBi):

2.8

5.5

6

VSWR

1.5

1.5

1.5

PIM (3RD Order 2x43dBm) (dBc)

-150

-150

-150

Isolation (dB)

≥18

≥20

≥30

Max. Power Per Port (W):

50

Impedance (ohm):

50

Lightning Protection:

DC Grounded

Connector Type:

2 X 4.3-10 Female

Mechanical Data

Antenna Dimensions (mm):

Φ265×18

Antenna Net Weight/Bracket (kg):

0.5

Radome Material:

ABS white RAL9003

Operational Temperature

-5560

Operational Humidity

< 95

Mounting

Ceiling

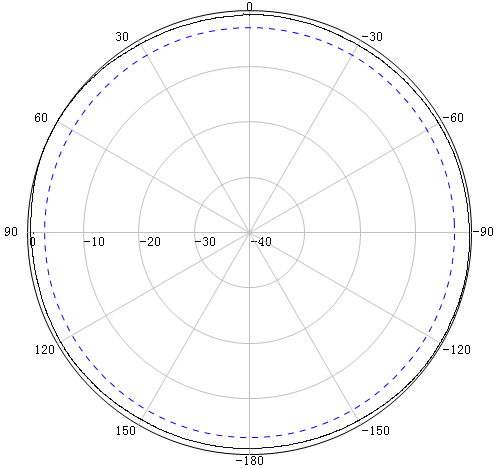

Azimuth

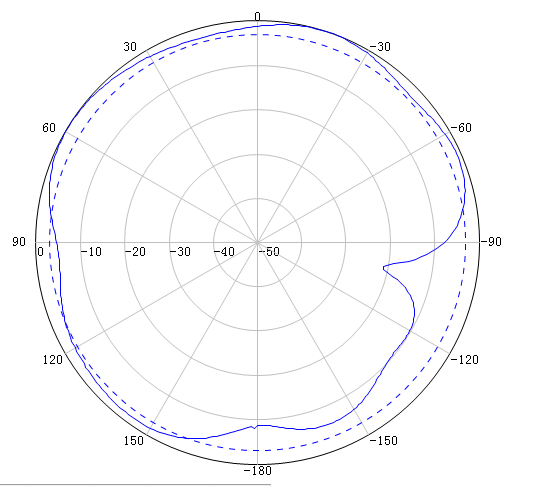

Elevation(Low band)

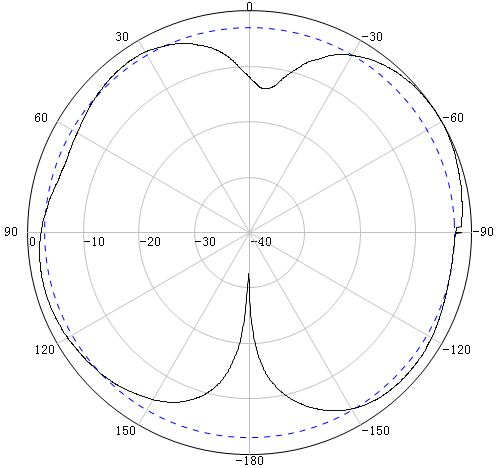

Elevation(High band 1710-2700)

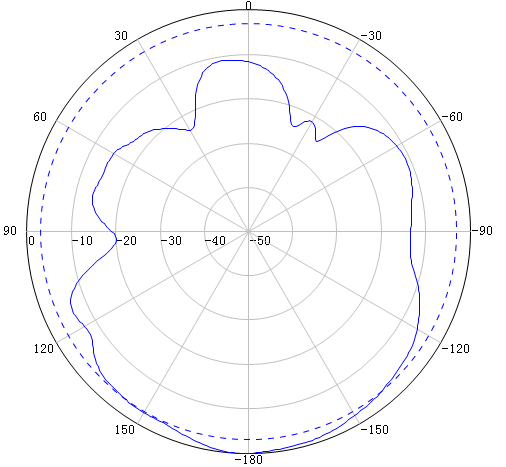

Elevation(High band 3400-3800)
