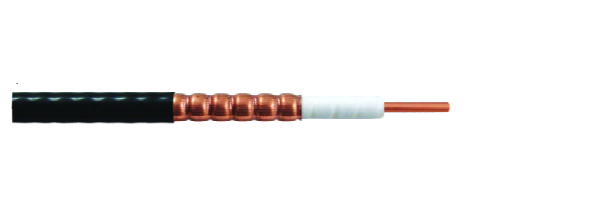

Impedance

50 ohm

Operating Frequency

DC - 3 GHz

Max. VSWR

1.10 for 800 - 2200 MHz

1.15 for DC - 3 GHz

Velocity

88%

Pulse Reflection

0.50%

RF Peak Voltage

0.83 kV

Peak Power

11.0 kW

Max. Voltage for Jacket Spark Test

3.0 kV

Capacitance

75 pf/m

Inductance

0.19 uH/m

DC Resistance Inner Conductor

DC Resistance Outer Conductor

5.50 ohm/km

3.70 ohm/km

Insulation Resistance

5000M ohm

Cut-off Frequency

18.6 GHz

Attenuation

in Attached Table

Minimum Bending Radius for Multiple Bends

76 mm

Maximum Times of Bending

15

Minimum Bending Radius for Single Bend

38 mm

Bending Moment

1.3 N-m

Mobile Application

200 mm

Tensile Strength

53 Kg

Flat Plate Crush Strength

2.0 Kg/mm

Inner Conductor OD

2.45 mm

Diameter over Dielectric Material

6.5 mm

Outer Conductor OD

7.5 mm

Diameter over Jacket

9.5 mm

Unit Weight

0.13 kg/m

Inner Conductor

Copper-Clad Aluminum Wire

Dielectric

Foam PE

Color of Dielectric

White

Outer Conductor

Corrugated Copper Tube

Jacket Material

PE, (UL1518-1990)

Jacket Color

Black

Storage Temperature

From -55 °C to 85 °C

Operating Temperature

From -55 °C to 85 °C

Installation / Cutting / Re-packing Temperature

From -40 °C to 60 °C

Frequency (MHz)

Attenuation (dB/100m)

Average Power (kW)

10

1.36

6.20

100

4.42

1.80

150

5.22

1.53

200

6.10

1.30

300

7.56

1.06

450

9.40

0.85

800

12.72

0.62

900

13.50

0.58

1000

14.30

0.56

1500

17.80

0.44

1800

19.70

0.40

2000

20.00

0.37

2500

23.30

0.34

3000

26.40

0.30
