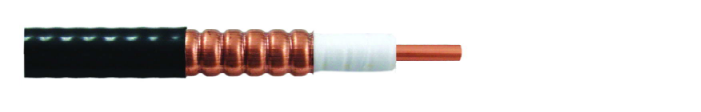

Impedance

50 ohm

Operating Frequency

DC - 3 GHz

Max. VSWR

1.10 for 800 - 2200 MHz

1.15 for DC - 3 GHz

Velocity

88%

Pulse Reflection

0.50%

RF Peak Voltage

1.05 kV

Peak Power

15.6 kW

Max. Voltage for Jacket Spark Test

5 kV

Capacitance

75 pf/m

Inductance

0.2 uH/m

DC Resistance Inner Conductor

DC Resistance Outer Conductor

3.478 ohm/km

2.854 ohm/km

Insulation Resistance

5000M ohm

Cut-off Frequency

13.5 GHz

Attenuation

in Attached Table

Minimum Bending Radius for Multiple Bends

95 mm

Maximum Times of Bending

15

Minimum Bending Radius for Single Bend

40 mm

Bending Moment

1.9 N-m

Mobile Application

300 mm

Tensile Strength

113 Kg

Flat Plate Crush Strength

2.0 Kg/mm

Inner Conductor OD

3.15 mm

Diameter over Dielectric Material

8.68 mm

Outer Conductor OD

9.53 mm

Diameter over Jacket

11.20 mm

Unit Weight

0.135 kg/m

Inner Conductor

Copper-Clad Aluminum Wire

Dielectric

Foam PE

Color of Dielectric

White

Outer Conductor

Corrugated Copper Tube

Jacket Material

PE, (UL1518-1990)

Jacket Color

Black

Storage Temperature

from -55 °C to 85 °C

Operating Temperature

from -55 °C to 85 °C

Installation / Cutting / Re-packing Temperature

from -40 °C to 60 °C

Frequency (MHz)

Attenuation (dB/100m)

Average Power (kW)

10

1.06

7.23

100

3.42

2.24

150

4.22

1.83

200

4.90

1.56

300

6.06

1.26

450

7.51

1.02

800

10.20

0.748

900

10.90

0.70

1000

11.60

0.663

1500

14.40

0.53

1800

16.00

0.479

2000

17.00

0.451

2500

19.30

0.40

3000

21.40

0.358
